B288CMP-3/4-316L-PM – BPE TC 88 15RAEP/POL OD SF4
Technical Details
| Range | Bends |
| Product model | Tri-Clover BPE Bends 88 |
| Size | 0.75" |
| Material | 316L |
| Finish | SF4(PM) (ID=15EP/OD=32µin) |
| Connection type | Clamp ends |
| Standard | UltraPure |
| Design | B288CMP |
| OD/ID x t | 19.05/15.75 x 1.65 |
| OD/ID x t, inch | 0.750/0.620 x 0.065 |

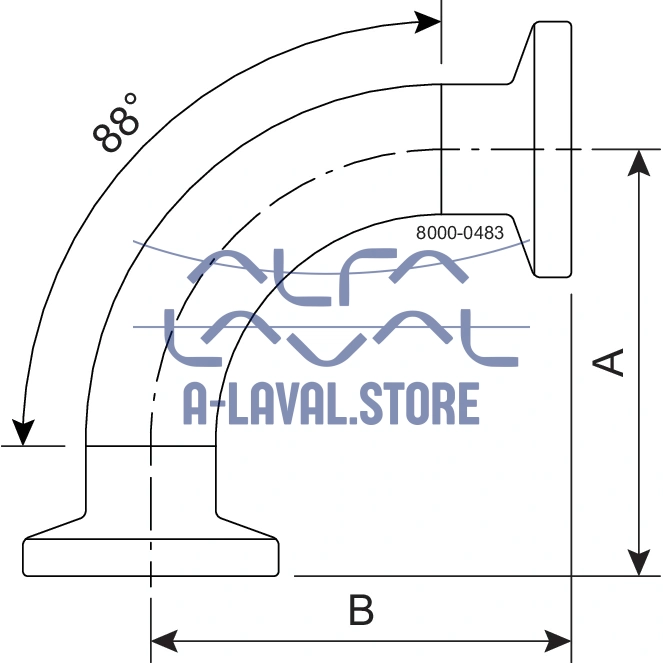

| Dimension A, Inch | 1.654 |
| Dimension A | 42.00 |
| Dimension B, Inch | 1.598 |
| Dimension B | 40.60 |
| Weight – Net (Kg) | 0.24 kg |
