Connection type: Tri-Clamp and Weld
Design: B32MS

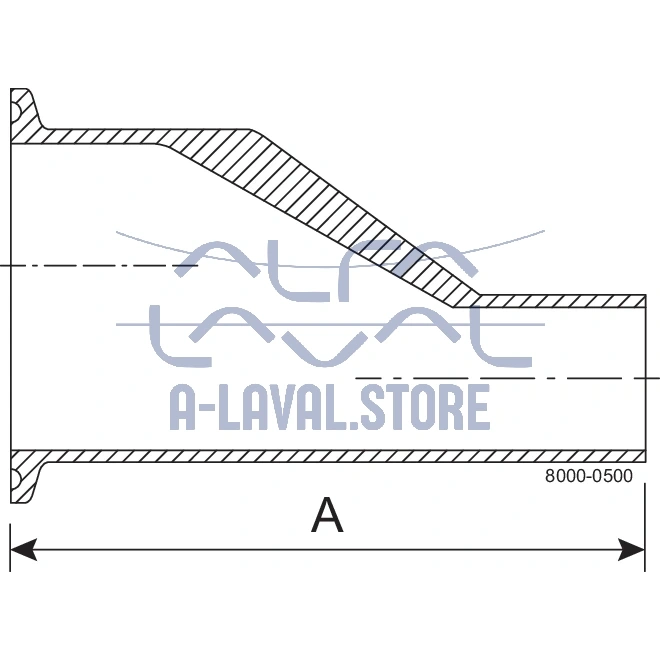

Dimension A: 76.20
Dimension A, Inch: 3.00
Finish: SF1(PL) (ID=20/OD=32µin)
Material: 316L
OD/ID x t: 63.50/60.20 x 1.65
OD/ID x t, inch: 2.500/2.370 x 0.065
Product model: Tri-Clover BPE Reducers Eccentric
Range: Reducers
Second size: 2″
Size: 2.5″
Standard: ASME BPE
Weight – Net (Kg): 0.81 kg
Log in or register to view prices.
Log in or register to view and purchase products.
B32MS-2 1/2 X 2-316L-PL – BPE EccRed-TCxWeld 20Ra, SF1
| Connection type | Tri-Clamp and Weld |
| Design | B32MS |
| Dimension A | 76.20 |
| Dimension A, Inch | 3.00 |
| Finish | SF1(PL) (ID=20/OD=32µin) |
| Material | 316L |
| OD/ID x t | 63.50/60.20 x 1.65 |
| OD/ID x t, inch | 2.500/2.370 x 0.065 |
| Product model | Tri-Clover BPE Reducers Eccentric |
| Range | Reducers |
| Second size | 2" |
| Size | 2.5" |
| Standard | ASME BPE |
| Weight – Net (Kg) | 0.81 kg |
B32MS-2 1/2 X 2-316L-PL
