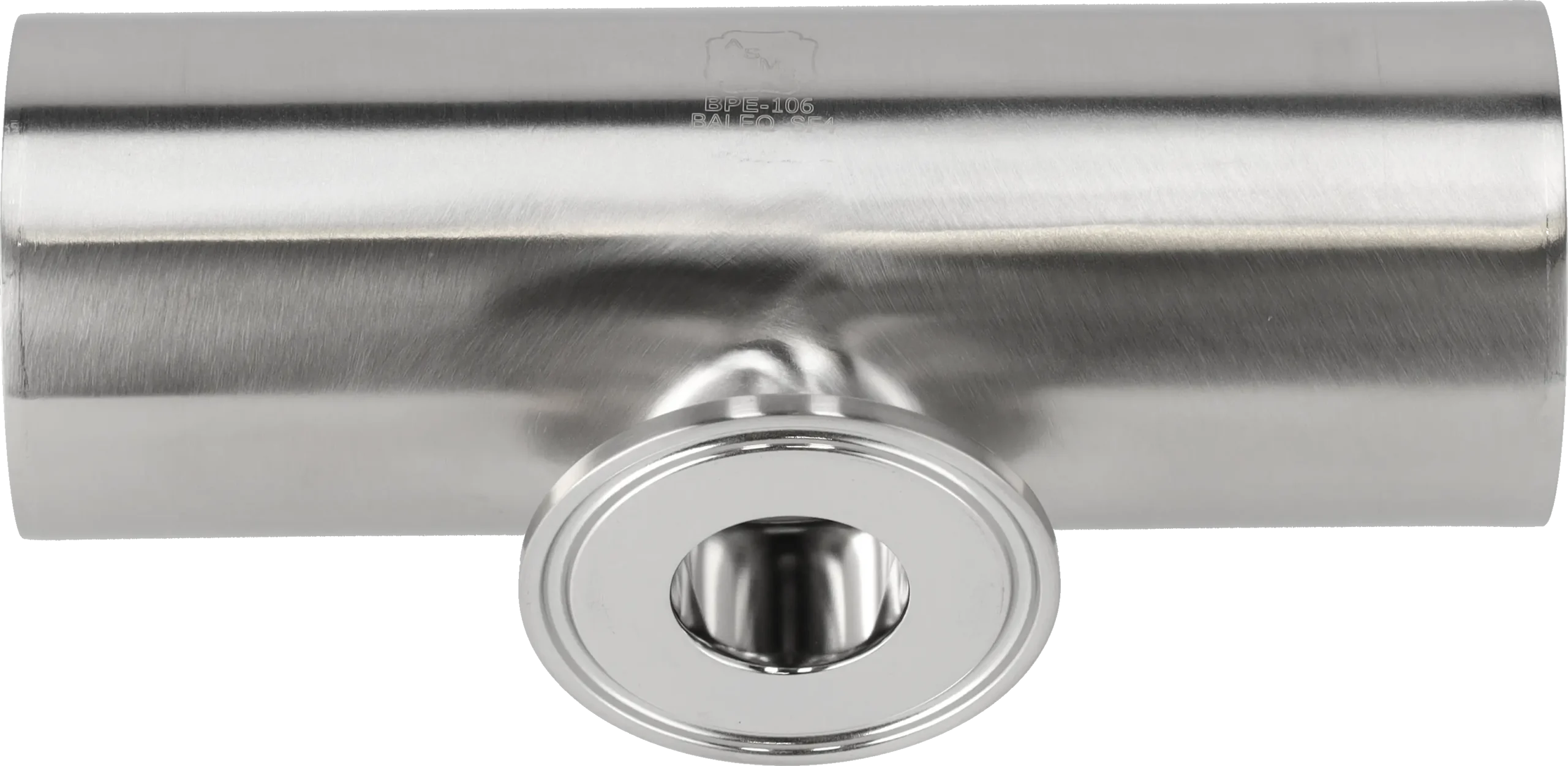

B7RWWMS-1 1/2 X 1/2 -316L-PM – BPE S/O RED T WXTC 15RAEP SF4
Technical Details
| Range | Tees |
| Product model | Tri-Clover BPE Reducing Tees Short |
| Size | 1.5" |
| Material | 316L |
| Second size | 0.5" |
| Finish | SF4(PM) (ID=15EP/OD=32µin) |
| Connection type | Weld and Weld and Short Reduced Tri-Clamp |
| Standard | ASME BPE |
| Design | B7RWWMS |
| OD/ID x t | 38.10/34.80 x 1.65 |
| OD/ID x t, inch | 1.500/1.370 x 0.065 |
| Dimension A, Inch | 2.38 |
| Dimension A | 60.30 |
| Dimension B, Inch | 1.38 |
| Dimension B | 34.90 |
| Weight – Net (Kg) | 0.247 kg |
