Connection type: Weld and Weld and Short Reduced Tri-Clamp
Design: B7RWWMS
Dimension A: 85.70
Dimension A, Inch: 3.38
Dimension B: 54.00
Dimension B, Inch: 2.13
Finish: SF1(PL) (ID=20/OD=32µin)
Material: 316L
OD/ID x t: 76.20/72.90 x 1.65
OD/ID x t, inch: 3.000/2.870 x 0.065

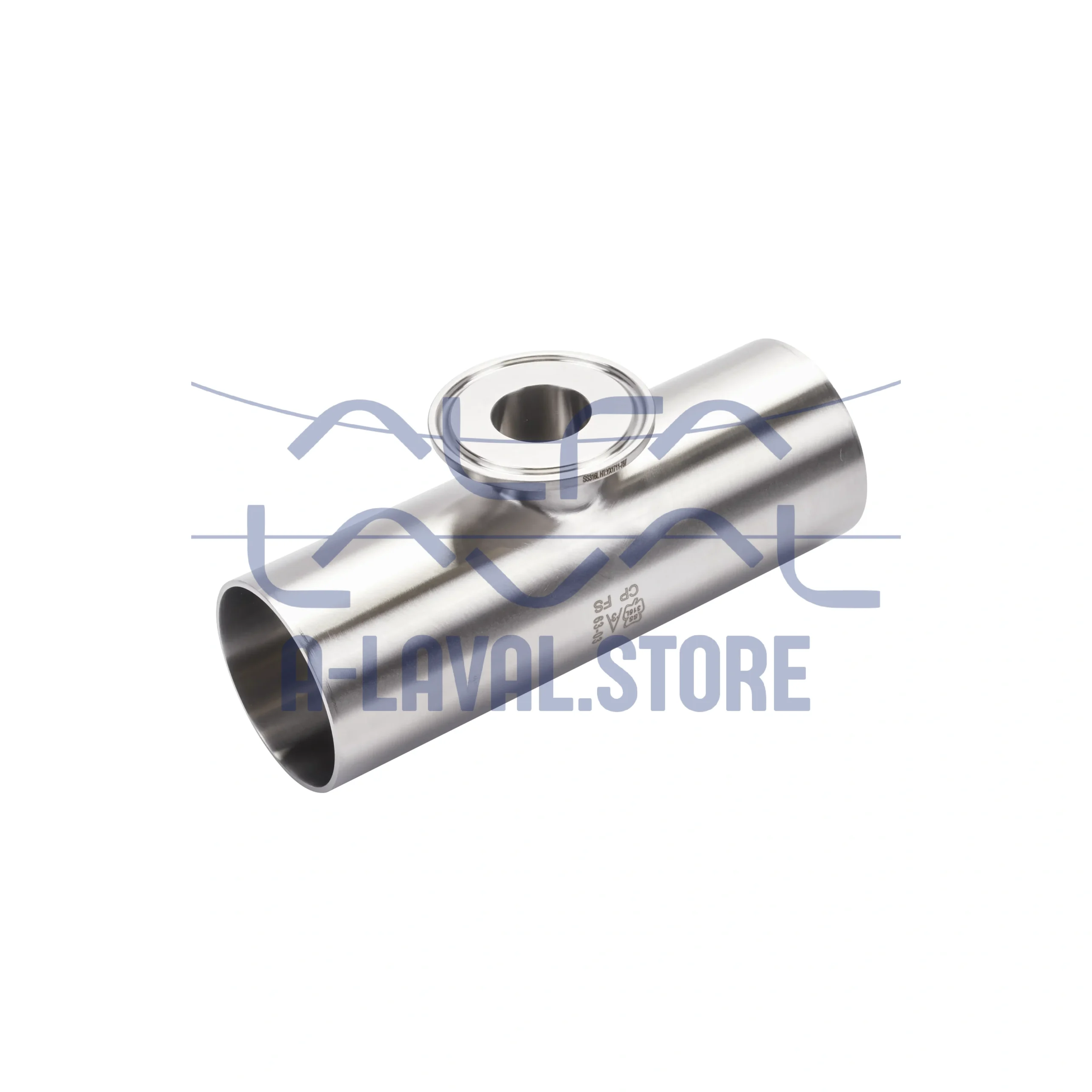

Product model: Tri-Clover BPE Reducing Tees Short
Range: Tees
Second size: 2″
Size: 3″
Standard: ASME BPE
Weight – Net (Kg): 0.67 kg
Log in or register to view prices.
Log in or register to view and purchase products.
B7RWWMS-3 X 2-316L-PL – BPE S/O RED T WXTC 20RA SF1
| Connection type | Weld and Weld and Short Reduced Tri-Clamp |
| Design | B7RWWMS |
| Dimension A | 85.70 |
| Dimension A, Inch | 3.38 |
| Dimension B | 54.00 |
| Dimension B, Inch | 2.13 |
| Finish | SF1(PL) (ID=20/OD=32µin) |
| Material | 316L |
| OD/ID x t | 76.20/72.90 x 1.65 |
| OD/ID x t, inch | 3.000/2.870 x 0.065 |
| Product model | Tri-Clover BPE Reducing Tees Short |
| Range | Tees |
| Second size | 2" |
| Size | 3" |
| Standard | ASME BPE |
| Weight – Net (Kg) | 0.67 kg |
B7RWWMS-3 X 2-316L-PL
