Connection type: Weld and Weld and Short Tri-Clamp
Design: B7WWMS

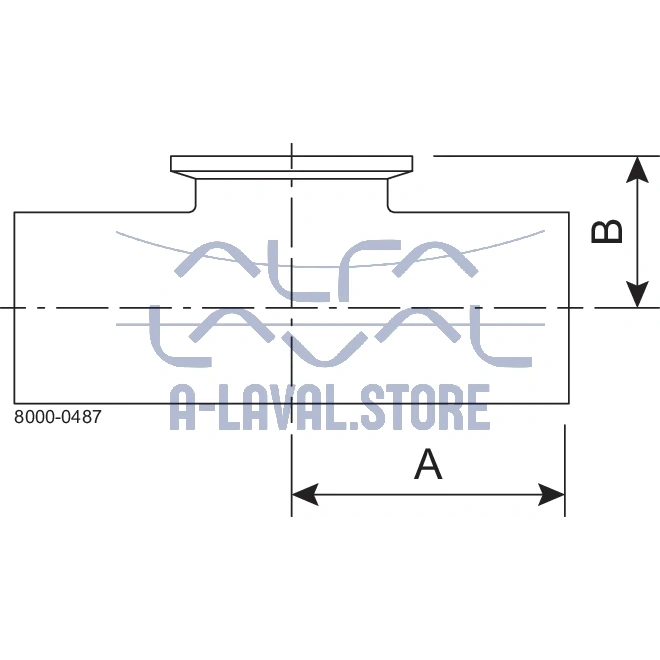

Dimension A: 73.00
Dimension A, Inch: 2.88
Dimension B: 41.30
Dimension B, Inch: 1.63
Finish: SF4(PM) (ID=15EP/OD=32µin)
Material: 316L
OD/ID x t: 50.80/47.50 x 1.65
OD/ID x t, inch: 2.000/1.870 x 0.065
Product model: Tri-Clover BPE Tees Short
Range: Tees
Size: 2″
Standard: ASME BPE
Weight – Net (Kg): 0.39 kg
Log in or register to view prices.
Log in or register to view and purchase products.
B7WWMS-2-316L-PM – BPE S/O WXTC T 15RA/POL,SF4
| Connection type | Weld and Weld and Short Tri-Clamp |
| Design | B7WWMS |
| Dimension A | 73.00 |
| Dimension A, Inch | 2.88 |
| Dimension B | 41.30 |
| Dimension B, Inch | 1.63 |
| Finish | SF4(PM) (ID=15EP/OD=32µin) |
| Material | 316L |
| OD/ID x t | 50.80/47.50 x 1.65 |
| OD/ID x t, inch | 2.000/1.870 x 0.065 |
| Product model | Tri-Clover BPE Tees Short |
| Range | Tees |
| Size | 2" |
| Standard | ASME BPE |
| Weight – Net (Kg) | 0.39 kg |
B7WWMS-2-316L-PM
