Connection type: Clamp ends
Design: B9MP

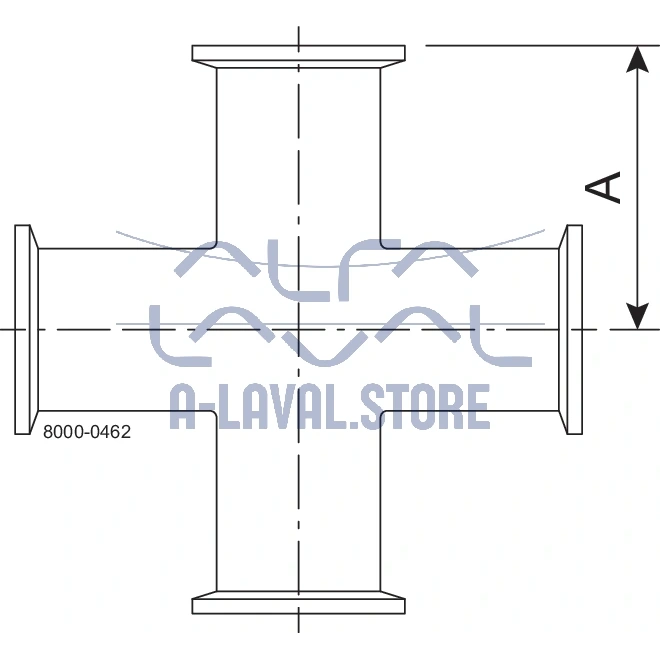

Dimension A: 120.70
Dimension A, Inch: 4.75
Finish: SF4(PM) (ID=15EP/OD=32µin)
Material: 316L
OD/ID x t: 101.60/97.38 x 2.11
OD/ID x t, inch: 4.000/3.834 x 0.083
Product model: Tri-Clover BPE Crosses
Range: Tees
Size: 4″
Standard: ASME BPE
Weight – Net (Kg): 2.449 kg
Log in or register to view prices.
Log in or register to view and purchase products.
B9MP-4-316L-PM – BPE TC CROSS 15RAEP/POLOD SF4
| Connection type | Clamp ends |
| Design | B9MP |
| Dimension A | 120.70 |
| Dimension A, Inch | 4.75 |
| Finish | SF4(PM) (ID=15EP/OD=32µin) |
| Material | 316L |
| OD/ID x t | 101.60/97.38 x 2.11 |
| OD/ID x t, inch | 4.000/3.834 x 0.083 |
| Product model | Tri-Clover BPE Crosses |
| Range | Tees |
| Size | 4" |
| Standard | ASME BPE |
| Weight – Net (Kg) | 2.449 kg |
B9MP-4-316L-PM
