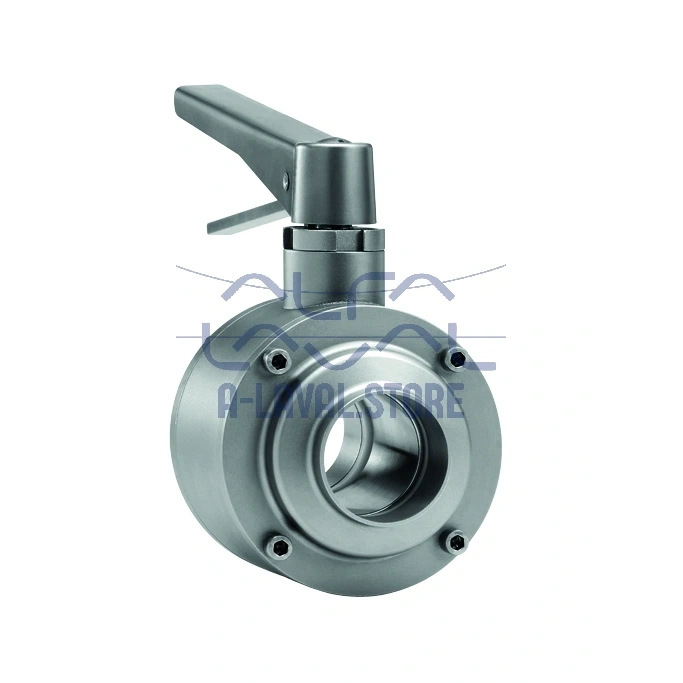

BALL VALVE SBV-DN25-W/W-MAN

Actuation: Manual
Actuator function: Standard
Body combination: Standard handle
Classification: II 2 G D
Connection type: Welding ends
Dimension a inch: 2.91
Dimension a mm: 74
Dimension b inch: 3.66
Dimension b mm: 93
Dimension c inch: 7.09
Dimension c mm: 180
Dimension d inch: 4.61
Dimension d mm: 117
Dimension t inch: 0.06
Dimension t mm: 1.5
Elastomer: FPM (Viton)
Inner diameter inch: 0.86
Inner diameter mm: 26
Inside surface quality: Ra < 0.8 µm
Max product pressure: 0 to 1600 kPa (16 bar)
Max product pressure psi: 286 PSI
Min product pressure: Full vacuum
Min product pressure psi: Full vacuum
Other seals: NBR
Other steel parts: 1.4307 (304)
Outer diameter inch: 0.98
Outer diameter mm: 29
Outside surface quality: Blasted
Product wetted steel part: 1.4404 (316L)
Size din: DN25
Size inch: 1.0
Size mm: 25.4
Temperature range ambient air: +4 °C to +45 °C
Temperature range ambient air fahrenheit: +39 °F to +113 °F
Temperature range operating: +0 °C to +95 °C
Temperature range operating fahrenheit: +32 °F to +203 °F
Weight – Net (Kg): 2.12 kg
