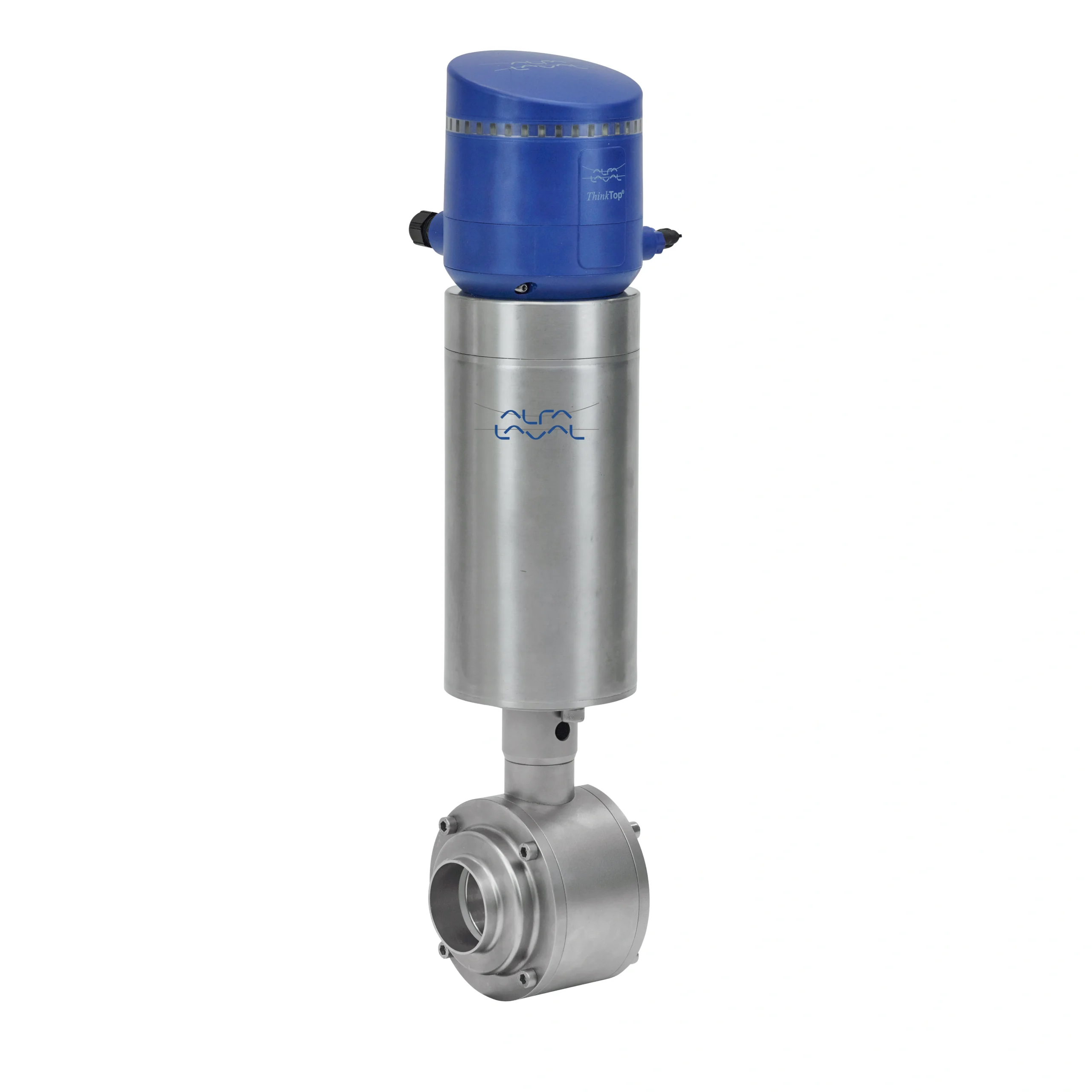

BALL VALVE SBV-DN80-W/W-NCTT – BALL VALVE SBV-DN80-W/W-NCTT – FPM-CAVITY FILLER
Technical Details
| Size din | DN80 |
| Connection type | Welding ends |
| Size mm | 76.1 |
| Size inch | 3.0 |
| Product wetted steel part | 1.4404 (316L) |
| Other steel parts | 1.4307 (304) |
| Elastomer | FPM (Viton) |
| Other seals | NBR |
| Max product pressure | 0 to 1600 kPa (16 bar) |
| Max product pressure psi | 418 PSI |
| Actuator function | Normally closed |
| Actuation | Pneumatic |
| Inside surface quality | Ra < 0.8 µm |
| Outside surface quality | Blasted |
| Temperature range operating | +0 °C to +95 °C |
| Temperature range operating fahrenheit | +32 °F to +203 °F |
| Min product pressure | Full vacuum |
| Min product pressure psi | Full vacuum |
| Temperature range steralization | 0°C to 140°C |
| Temperature range steralization fahrenheit | to +284 °F |
| Temperature range ambient air | +4 °C to +45 °C |
| Temperature range ambient air fahrenheit | +39 °F to +113 °F |
| Body combination | Actuator ø104 for ThinkTop |
| Outer diameter mm | 85 |
| Inner diameter mm | 81 |
| Classification | II 2 G D |
| Dimension a mm | 159 |
| Dimension a inch | 6.26 |
| Dimension b mm | 163 |
| Dimension b inch | 6.42 |
| Dimension c mm | 180 |
| Dimension c inch | 7.09 |
| Dimension e mm | 104 |
| Dimension e inch | 4.09 |
| Dimension g1 mm | 372 |
| Dimension g1 inch | 14.65 |
| Dimension g2 mm | 382 |
| Dimension g2 inch | 15.04 |
| Dimension l mm | 9.89 |
| Dimension l inch | 0.39 |
| Dimension t mm | 2 |
| Weight – Net (Kg) | 18.86 kg |
