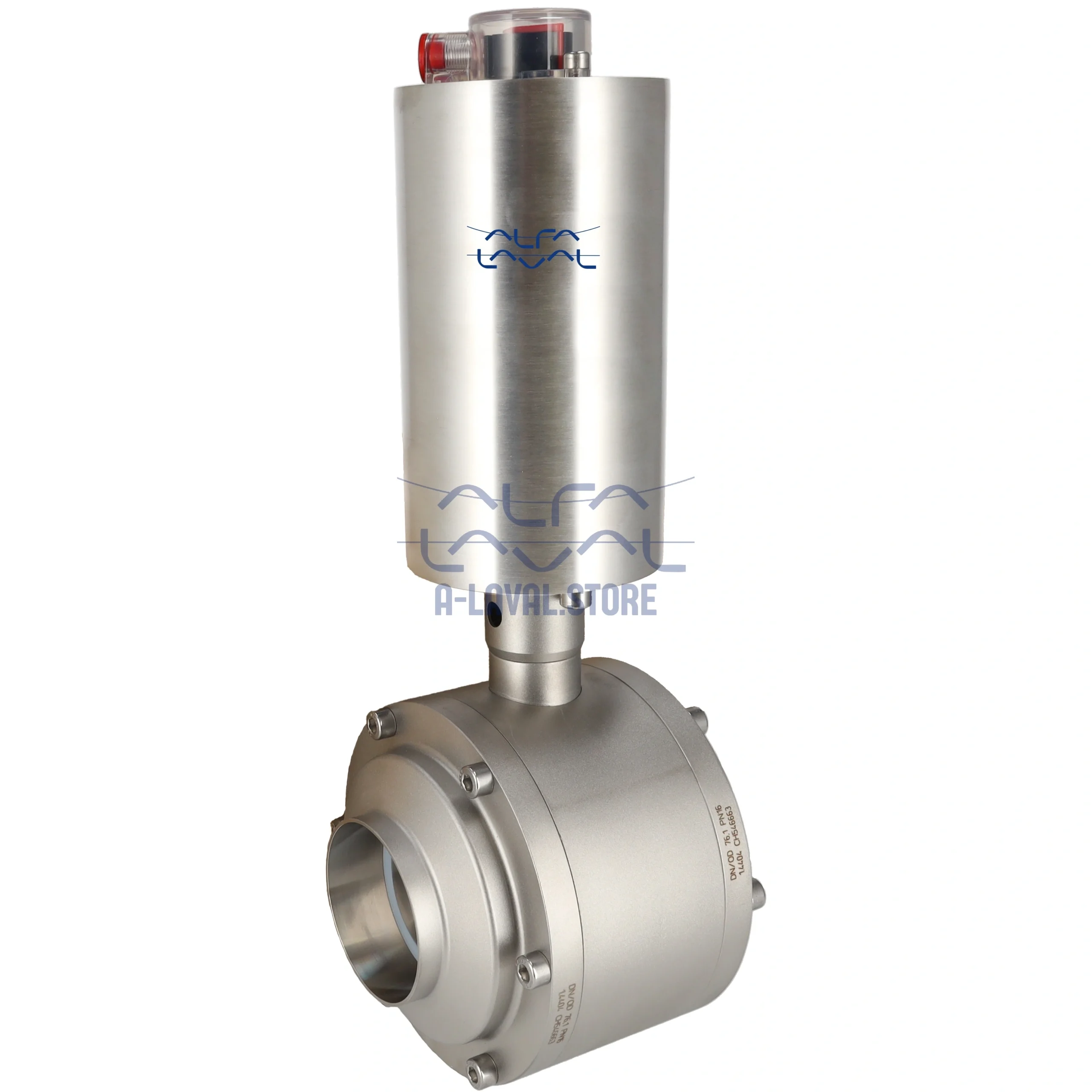

BALL VALVE SBV-ISO25-C/C-NC

Actuation: Pneumatic
Actuator function: Normally closed
Body combination: Standard actuator ø104
Classification: II 2 G D
Connection type: Clamp ends
Dimension a inch: 2.91
Dimension a mm: 74
Dimension b inch: 3.66
Dimension b mm: 93
Dimension e inch: 4.09
Dimension e mm: 104
Dimension f inch: 12.09
Dimension f mm: 307
Dimension l inch: 0.29
Dimension l mm: 7.48
Dimension t inch: 0.06
Dimension t mm: 1.6
Elastomer: FPM (Viton)
Inner diameter inch: 0.86
Inner diameter mm: 21.8
Inside surface quality: Ra < 0.8 µm
Max product pressure: 0 to 1600 kPa (16 bar)
Max product pressure psi: 336 PSI
Min product pressure: Full vacuum
Min product pressure psi: Full vacuum
Other seals: NBR
Other steel parts: 1.4307 (304)
Outer diameter inch: 0.98
Outer diameter mm: 25
Outside surface quality: Blasted
Product wetted steel part: 1.4404 (316L)
Size inch: 1.0
Size iso: 25
Size mm: 25.4
Temperature range ambient air: +4 °C to +45 °C
Temperature range ambient air fahrenheit: +39 °F to +113 °F
Temperature range operating: +0 °C to +95 °C
Temperature range operating fahrenheit: +32 °F to +203 °F
Temperature range steralization: 0°C to 140°C
Temperature range steralization fahrenheit: to +284 °F
Weight – Net (Kg): 6.5 kg
