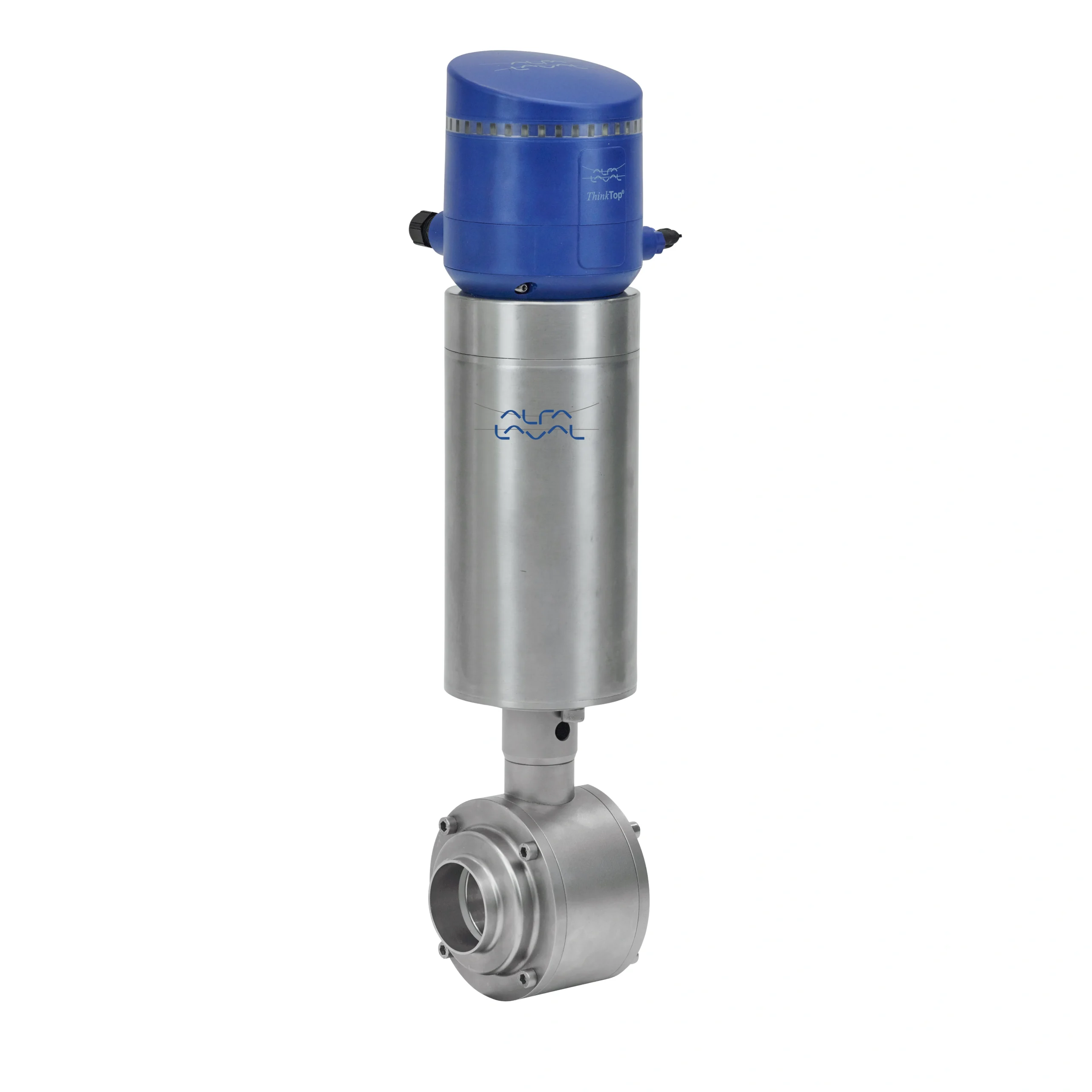

BALL.VALVE SBV-ISO51-C/C-NCTT – BALL.VALVE SBV-ISO51-C/C-NCTT – EPDM-CAVITY FILLER
Technical Details
| Connection type | Clamp ends |
| Size iso | 51 |
| Size mm | 50.8 |
| Size inch | 2.0 |
| Product wetted steel part | 1.4404 (316L) |
| Other steel parts | 1.4307 (304) |
| Elastomer | EPDM |
| Other seals | NBR |
| Max product pressure | 0 to 1600 kPa (16 bar) |
| Max product pressure psi | 404 PSI |
| Actuator function | Normally closed |
| Actuation | Pneumatic |
| Inside surface quality | Ra < 0.8 µm |
| Outside surface quality | Blasted |
| Temperature range operating | +0 °C to +95 °C |
| Temperature range operating fahrenheit | +32 °F to +203 °F |
| Min product pressure | Full vacuum |
| Min product pressure psi | Full vacuum |
| Temperature range steralization | 0°C to 140°C |
| Temperature range steralization fahrenheit | to +284 °F |
| Temperature range ambient air | +4 °C to +45 °C |
| Temperature range ambient air fahrenheit | +39 °F to +113 °F |
| Body combination | Actuator ø104 for ThinkTop |
| Outer diameter mm | 51 |
| Outer diameter inch | 2.01 |
| Inner diameter mm | 47.8 |
| Inner diameter inch | 1.88 |
| Classification | II 2 G D |
| Dimension a mm | 110 |
| Dimension a inch | 4.33 |
| Dimension b mm | 113 |
| Dimension b inch | 4.45 |
| Dimension c mm | 180 |
| Dimension c inch | 7.09 |
| Dimension e mm | 104 |
| Dimension e inch | 4.09 |
| Dimension g1 mm | 350 |
| Dimension g1 inch | 13.78 |
| Dimension g2 mm | 360 |
| Dimension g2 inch | 14.17 |
| Dimension l mm | 7.48 |
| Dimension l inch | 0.29 |
| Dimension t mm | 1.6 |
| Dimension t inch | 0.06 |
| Weight – Net (Kg) | 4.5 kg |
