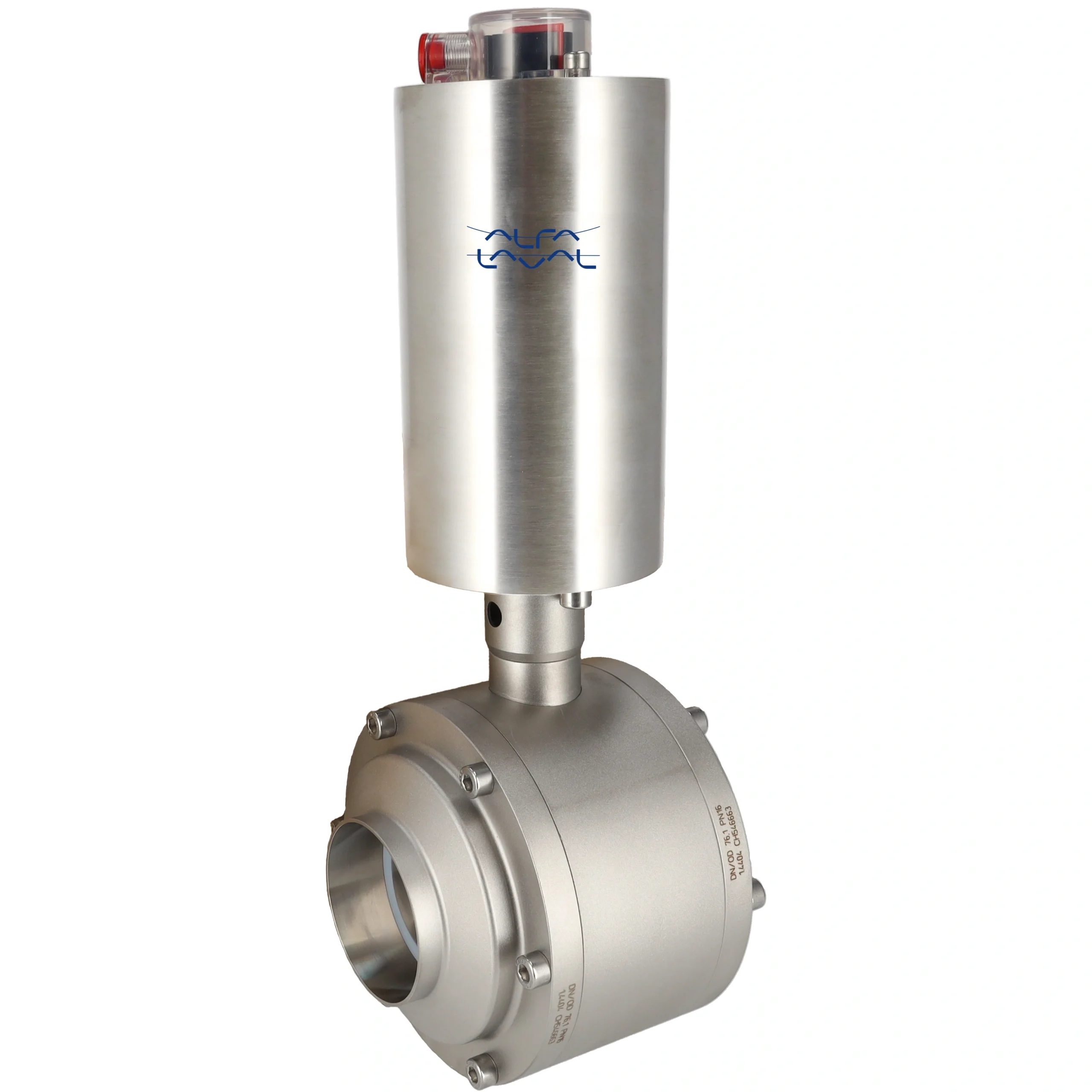

BALL VALVE SBV-ISO63,5-W/W-NC – BALL VALVE SBV-ISO63,5-W/W-NC – NBR-ACT. Ø104-CAVITY CLEANING
Technical Details
| Connection type | Welding ends |
| Size iso | 63.5 |
| Size mm | 63.5 |
| Size inch | 2.5 |
| Product wetted steel part | 1.4404 (316L) |
| Other steel parts | 1.4307 (304) |
| Elastomer | NBR |
| Other seals | NBR |
| Max product pressure | 0 to 1600 kPa (16 bar) |
| Max product pressure psi | 473 PSI |
| Actuator function | Normally closed |
| Actuation | Pneumatic |
| Inside surface quality | Ra < 0.8 µm |
| Outside surface quality | Blasted |
| Temperature range operating | +0 °C to +95 °C |
| Temperature range operating fahrenheit | +32 °F to +203 °F |
| Min product pressure | Full vacuum |
| Min product pressure psi | Full vacuum |
| Temperature range steralization | 0°C to 100°C |
| Temperature range steralization fahrenheit | to +212 °F |
| Temperature range ambient air | +4 °C to +45 °C |
| Temperature range ambient air fahrenheit | +39 °F to +113 °F |
| Body combination | Standard actuator ø104 |
| Outer diameter mm | 63.5 |
| Outer diameter inch | 2.5 |
| Inner diameter mm | 60.3 |
| Inner diameter inch | 2.37 |
| Classification | II 2 G D |
| Dimension a mm | 130 |
| Dimension a inch | 5.12 |
| Dimension b mm | 125 |
| Dimension b inch | 4.92 |
| Dimension e mm | 104 |
| Dimension e inch | 4.09 |
| Dimension f mm | 335 |
| Dimension f inch | 13.19 |
| Dimension l mm | 7.48 |
| Dimension l inch | 0.29 |
| Dimension t mm | 1.6 |
| Dimension t inch | 0.06 |
| Weight – Net (Kg) | 1.8 kg |
