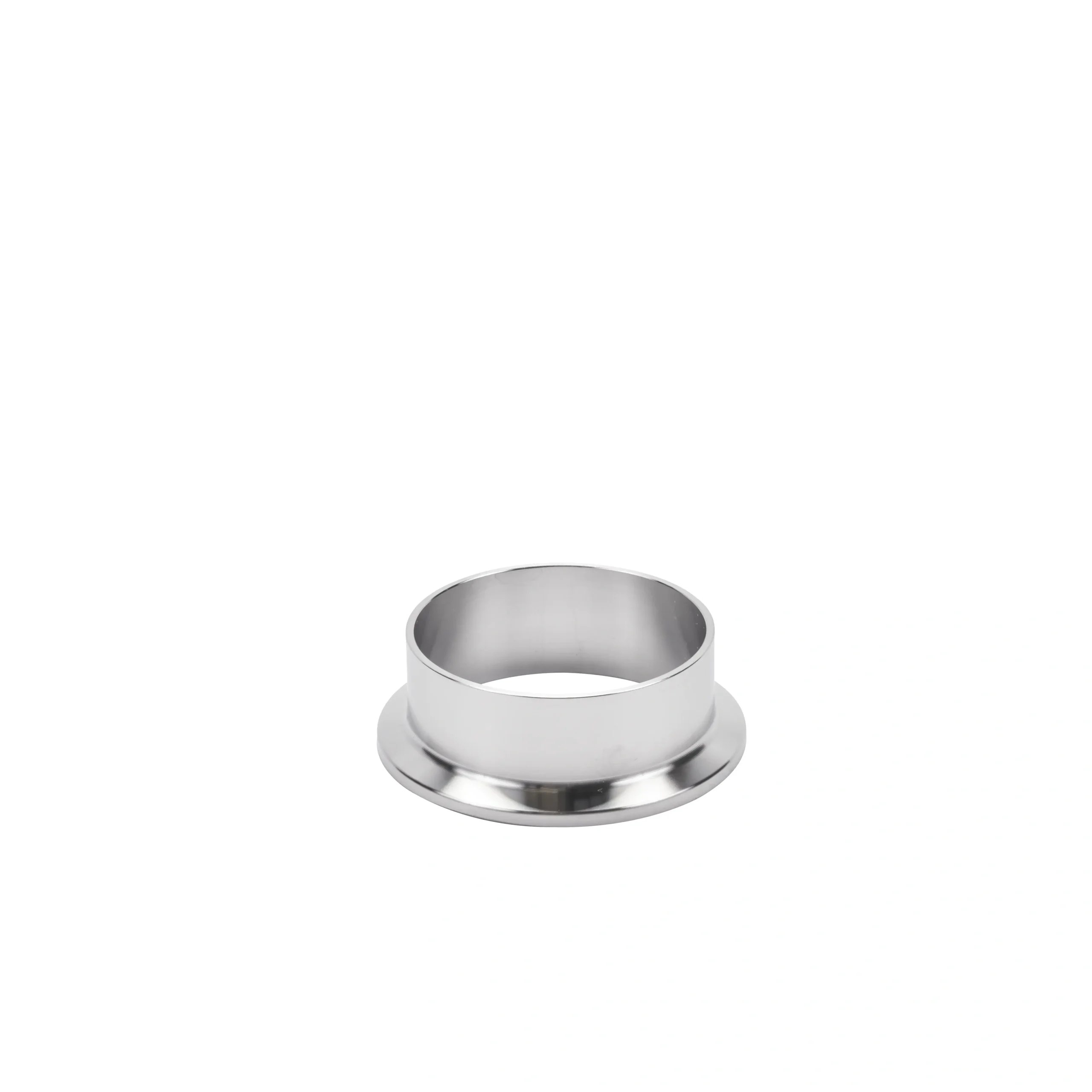

FERRULE KK DN65 HSF0 1.4404 – DIN 32676
Technical Details
| Range | Ferrules |
| Product Model | DIN EN 10357-A Clamp Unions DIN 32676 |
| Size | DN65 |
| Material | 1.4404 (316L) |
| Finish | HSF0 (ID=0.8/OD=1.6) |
| Connection type | Tri-Clamp and Weld |
| Standard | DIN 32676 |
| Design | KK short |
| OD/ID x t | 70.00/66.00 x 2.00 |
| OD1/ID1 x t1 | 70.00/66.00 x 2.00 |
| Dimension A | 91.00 |
| Dimension B | 28.00 |
| Weight – Net (Kg) | 0.19 kg |
