Connection type: Weld ends
Design: Complete flange PN16
Dimension A: 79.00
Dimension B: 50.00
Dimension C: 4.00 x M8
Finish: SB (ID=0.8/OD=1.0)
Material: 1.4404/EPDM
OD/ID x t: 35.00/32.00 x 1.50
Product Model: Fit to DIN Pressure Flanges
Range: Flanges
Size: DN32
Standard: Fit to EN10357-A
Weight – Net (Kg): 0.74 kg
Log in or register to view prices.
Log in or register to view and purchase products.

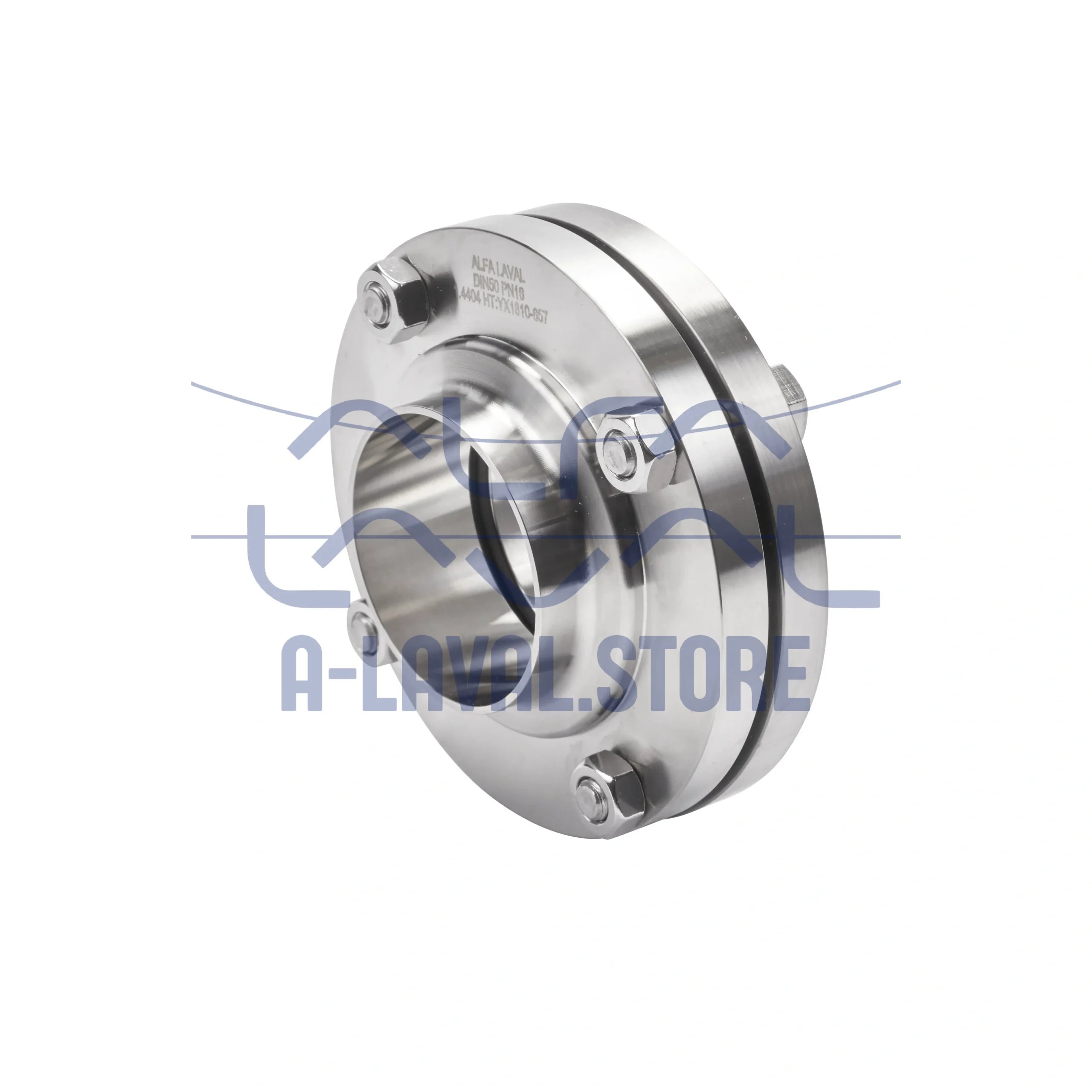

FLANGE COM DN32 SB 1.4404 EPDM – FIT TO EN10357-A TUBE P16
| Connection type | Weld ends |
| Design | Complete flange PN16 |
| Dimension A | 79.00 |
| Dimension B | 50.00 |
| Dimension C | 4.00 x M8 |
| Finish | SB (ID=0.8/OD=1.0) |
| Material | 1.4404/EPDM |
| OD/ID x t | 35.00/32.00 x 1.50 |
| Product Model | Fit to DIN Pressure Flanges |
| Range | Flanges |
| Size | DN32 |
| Standard | Fit to EN10357-A |
| Weight – Net (Kg) | 0.74 kg |
FLANGE COM DN32 SB 1.4404 EPDM
