FLANGE COM DN80 1.4404 EPDM – FIT TO EN10357-A TUBE P10 SEMI BRIGHT
Technical Details
| Range | Flanges |
| Product Model | Fit to DIN Pressure Flanges |
| Size | DN80 |
| Material | 1.4404/EPDM |
| Finish | SB (ID=0.8/OD=1.0) |
| Connection type | Weld ends |
| Standard | Fit to EN10357-A |
| Design | Complete flange PN10 |

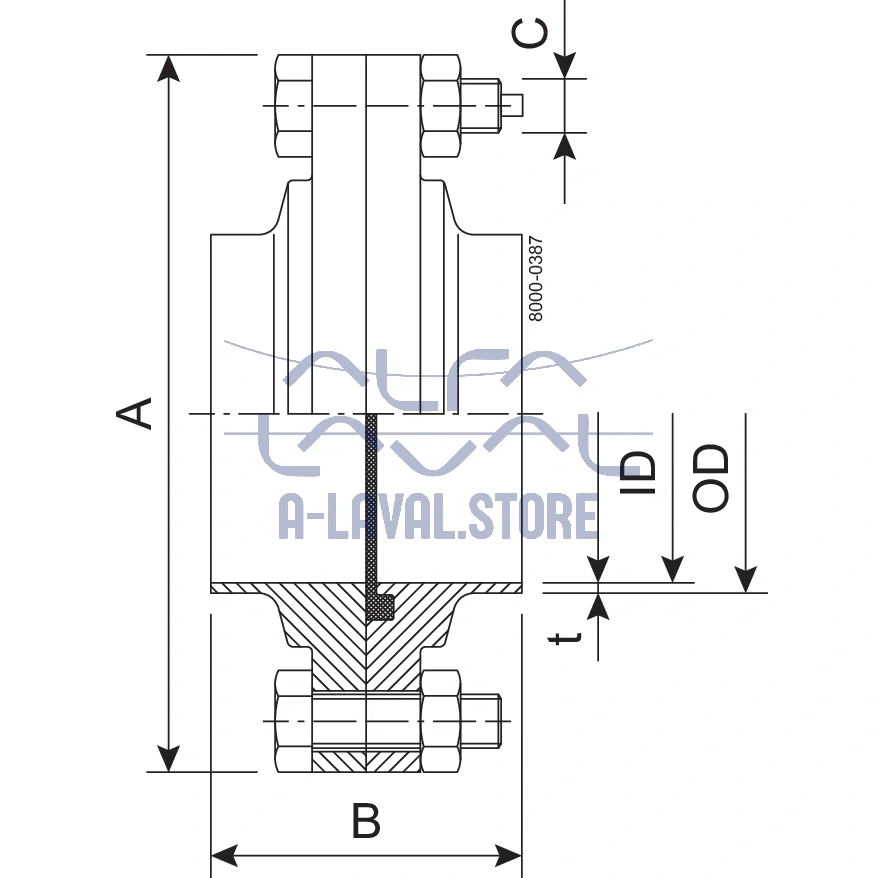

| OD/ID x t | 85.00/81.00 x 2.00 |
| Dimension A | 140.00 |
| Dimension B | 50.00 |
| Dimension C | 8.00 x M8 |
| Weight – Net (Kg) | 1.962 kg |
