Connection type: Weld ends
Design: Groove PN10
Dimension A: 125.00
Dimension B: 25.00
Dimension C: 10.00
Finish: HSF0 (ID=0.8/OD=1.6)
Material: 1.4404 (316L)
OD/ID x t: 85.00/81.00 x 2.00
Product Model: Fit to DIN Pressure Flanges
Range: Flanges
Size: DN80
Standard: Fit to EN10357-A
Weight – Net (Kg): 0.88 kg
Log in or register to view prices.
Log in or register to view and purchase products.

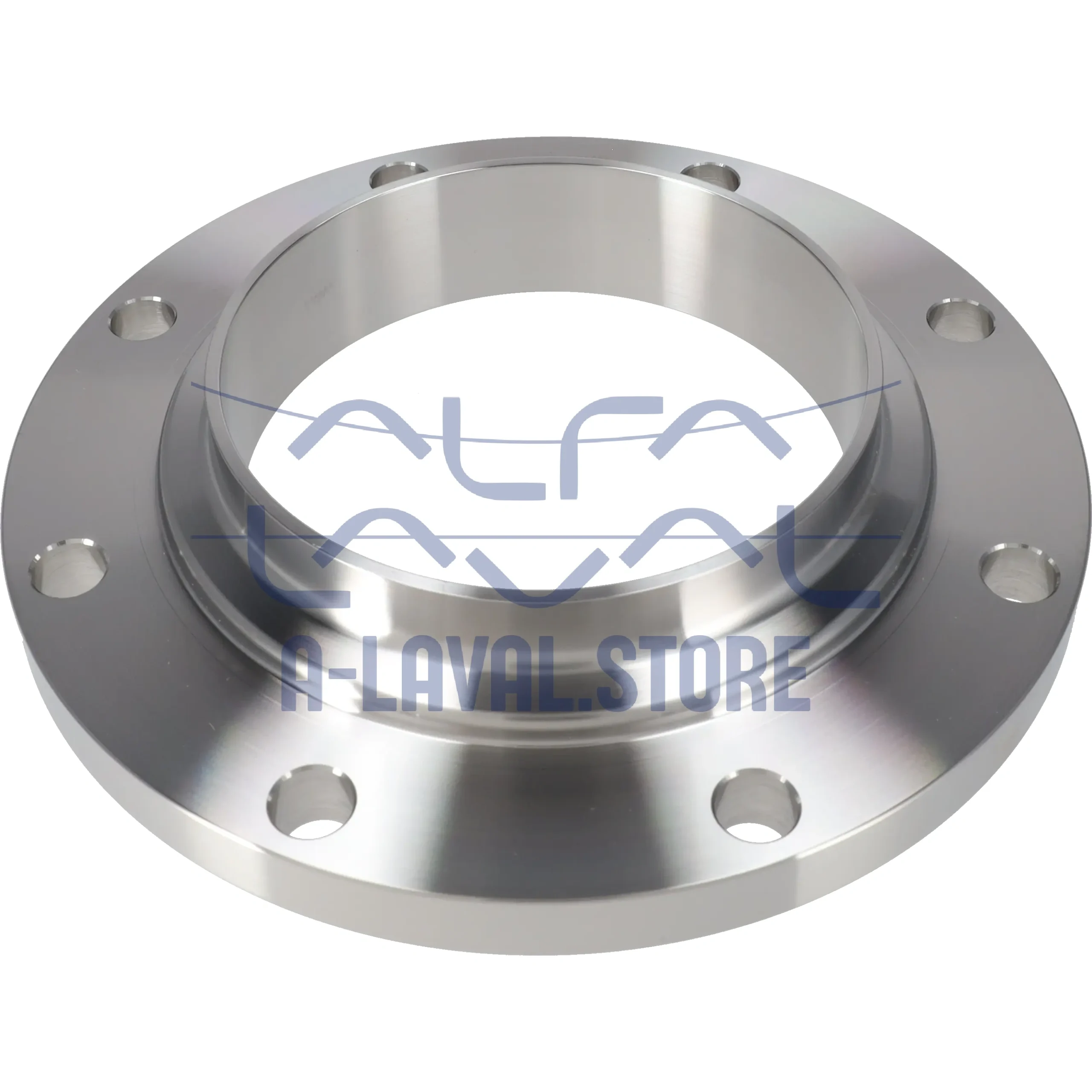

FLANGE PN10 DN80 HSF0 1.4404 – FIT TO EN10357-A TUBE GROOVE
| Connection type | Weld ends |
| Design | Groove PN10 |
| Dimension A | 125.00 |
| Dimension B | 25.00 |
| Dimension C | 10.00 |
| Finish | HSF0 (ID=0.8/OD=1.6) |
| Material | 1.4404 (316L) |
| OD/ID x t | 85.00/81.00 x 2.00 |
| Product Model | Fit to DIN Pressure Flanges |
| Range | Flanges |
| Size | DN80 |
| Standard | Fit to EN10357-A |
| Weight – Net (Kg) | 0.88 kg |
FLANGE PN10 DN80 HSF0 1.4404
