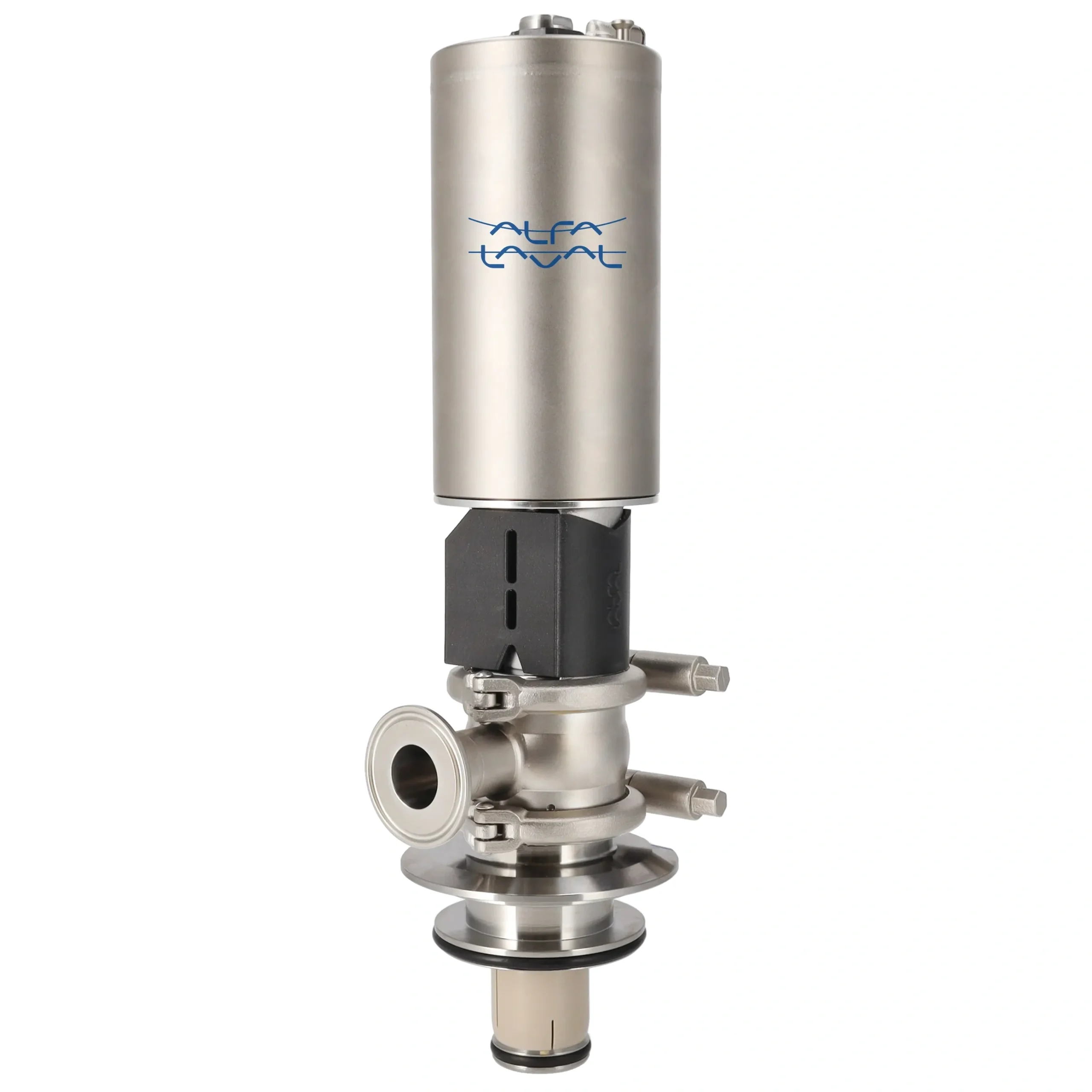

Free Rotating Retractor – 3inch Clamp conn, 1inch Clamp inlet, Q-doc
Technical Details
| Gasket material | EPDM |
| Tank connection type | Clamp insert |
| Certificate | FDA, EC1935/2004, Q-doc certificate |
| Flow at 2 bar m3h | 4 |
| Inlet clamp od mm | 50.5 |
| Inlet clamp od inch | 1.988 |
| Inlet tube id mm | 21.8 |
| Inlet tube id inch | .858 |
| Tank connection clamp od mm | 91 |
| Tank connection clamp od inch | 3.582 |
| Tank connection od mm | 72.5 |
| Tank connection od inch | 2.854 |
| Tank connection insert depth mm | 23 |
| Tank connection insert depth inch | .906 |
| Spray pattern | 270 |
| Dimension a mm | 85 |
| Dimension b open mm | 318 |
| Dimension b closed mm | 368.4 |
| Dimension c mm | 51.4 |
| Dimension d open mm | 73 |
| Dimension d closed mm | 23 |
| Dimension e mm | 71.5 |
| Weight kg | 4.5 |
| Weight lb | 9.9 |
| Inlet type | Clamp |
| Inlet size nom | 1-1.5 inch |
| Inlet standard | ISO 2852 |
| Tank connection size nom | 3inch |
| Tank connection standard | ISO 2852 |
| Ultrapure | No |
| Atex approved | Yes |
| Weight – Net (Kg) | 4.5 kg |
