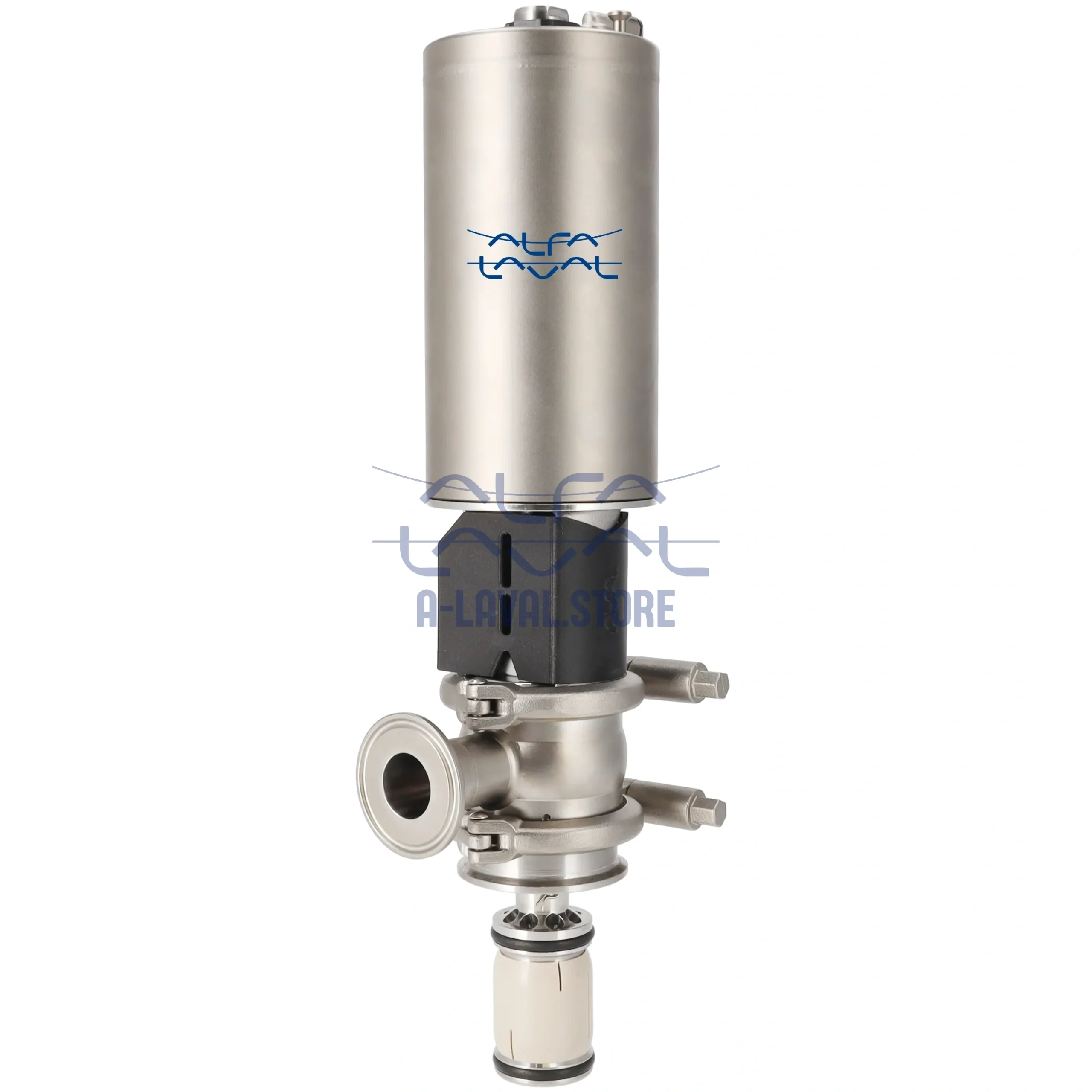

Free Rotating Retractor – 2inch Clamp conn, 1inch Clamp inlet
Technical Details
| Atex approved | Yes |
| Certificate | FDA, EC1935/2004 |
| Dimension a mm | 85 |
| Dimension b closed mm | 361 |
| Dimension b open mm | 314 |
| Dimension c mm | 44 |
| Dimension d closed mm | 30.5 |
| Dimension d open mm | 77.5 |
| Dimension e mm | 71.5 |
| Flow at 2 bar m3h | 4 |
| Gasket material | EPDM |
| Inlet clamp od inch | 1.988 |
| Inlet clamp od mm | 50.5 |
| Inlet size nom | 1-1.5 inch |
| Inlet standard | ISO 2852 |
| Inlet tube id inch | .858 |
| Inlet tube id mm | 21.8 |
| Inlet type | Clamp |
| Spray pattern | 270 |
| Tank connection clamp od inch | 2.516 |
| Tank connection clamp od mm | 63.91 |
| Tank connection id inch | 1.87 |
| Tank connection id mm | 47.5 |
| Tank connection size nom | 2inch |
| Tank connection standard | ISO 2852 |
| Tank connection type | Clamp on |
| Ultrapure | No |
| Weight – Net (Kg) | 4 kg |
| Weight kg | 4 |
| Weight lb | 8.8 |
