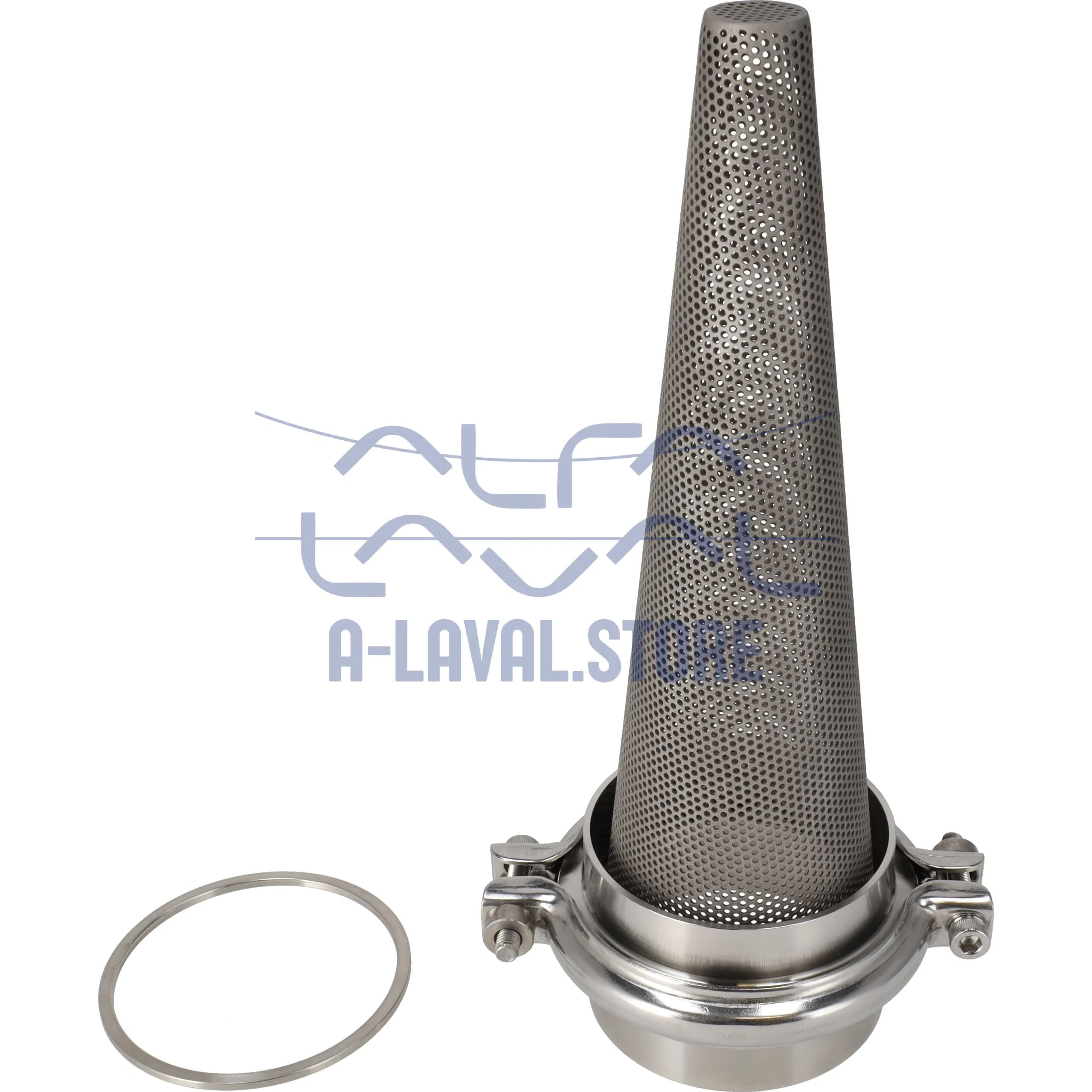

IN-LINE FILTER LKIF CL 4 INCH – IN-LINE FILTER LKIF CL 4 INCH – EPDM 1.4401
Technical Details
| Connection type | Clamp ends |
| Dimension a mm | 250 |
| Dimension d1 mm | 106.5 |
| Dimension m mm | 21.5 |
| Filter pattern mm | 2.25 |
| Max working pressure bar | 1000 kPa (10 bar) |
| Mesh perforation diameter mm | 1.50 |
| Min product pressure bar | Full vacuum |
| Other steel parts | AISI 304 Stainless Steel |
| Product wetted elastomers | EPDM |
| Product wetted steel part | Acid-resistant steel AISI 316 |
| Size inch | 4 |
| Size mm | 101.6 |
| Strainer area cm2 | 506 |
| Strainer element perforation | 40.2% of open area |
| Surface finish | Semi-Bright |
| Temperature range celcius | -10 °C to 140 °C (EPDM) |
| Weight – Net (Kg) | 1.35 kg |
