IN-LINE SIGHT GLASS LKGG-1 W – 38 EPDM 304
Technical Details
| Range | In-line sight glasses |
| Size mm | 38 |
| Size inch | 1496 |
| Material | 1.4301 (304) |
| Gasket material | EPDM |
| Standard | ISO connection |

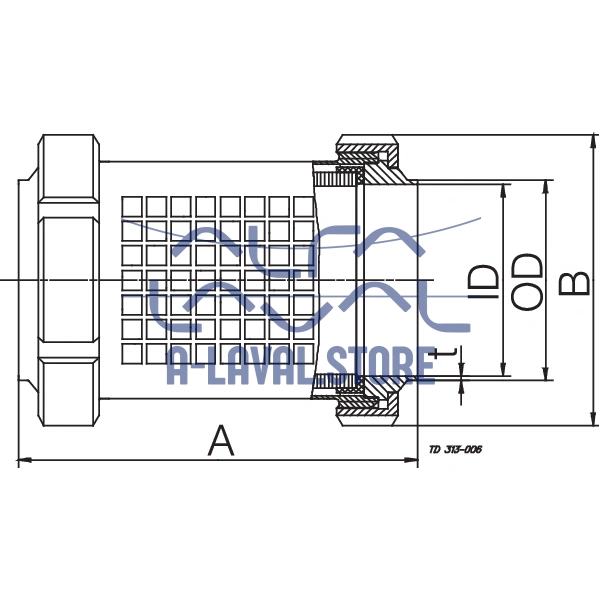

| Dimension a mm | 200 |
| Dimension a inch | 7.87 |
| Dimension b mm | 77 |
| Dimension b inch | 3.03 |
| Outer diameter mm | 38.9 |
| Outer diameter inch | 1.53 |
| Inner diameter mm | 35.5 |
| Inner diameter inch | 1.4 |
| Dimension t mm | 1.7 |
| Dimension t inch | 0.07 |
| Weight – Net (Kg) | 1.7 kg |
