LKC-2-GCV-4 POL T316L – CHECK VALVE
Technical Details
| Size din | DN100 |
| Product wetted steel part | 1.4404 (316L) |
| Elastomer | FPM (Viton) |
| Connection type | Clamp ends |
| Installation recommendations | Vertical position |
| Connection size | 101.6 |
| Connection size inch | 4 |
| Inside surface quality | Ra ≤ 0.8 μm |
| Outside surface quality | Polished |
| Max product pressure | 1000 kPa (10 bar) |
| Max product pressure psi | 14.5 PSI |
| Max temperature | 140° C (EPDM) |
| Max temperature fahrenheit | 284°F (EPDM) |
| Min temperature | -10° C |
| Min temperature fahrenheit | 14°F |

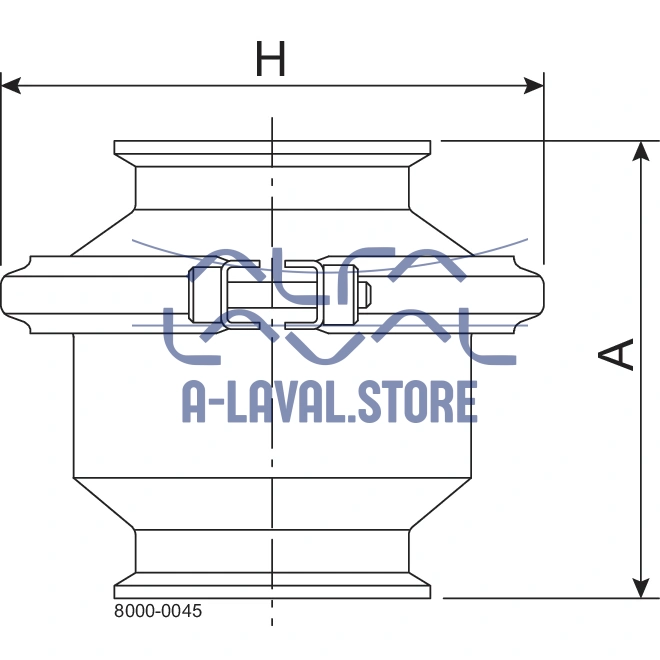

| Dimension a mm | 155.0 |
| Dimension a inch | 6.10 |
| Dimension h mm | 164.0 |
| Dimension h inch | 6.46 |
| Dimension t mm | 2 |
| Dimension t inch | 0.09 |
| Outer diameter mm | 104 |
| Outer diameter inch | 4.00 |
| Inner diameter mm | 100 |
| Inner diameter inch | 3.84 |
| Classification | II 2 G D* |
| Certification | ATEX |
| Standard | 3A |
| Weight – Net (Kg) | 2.1 kg |
