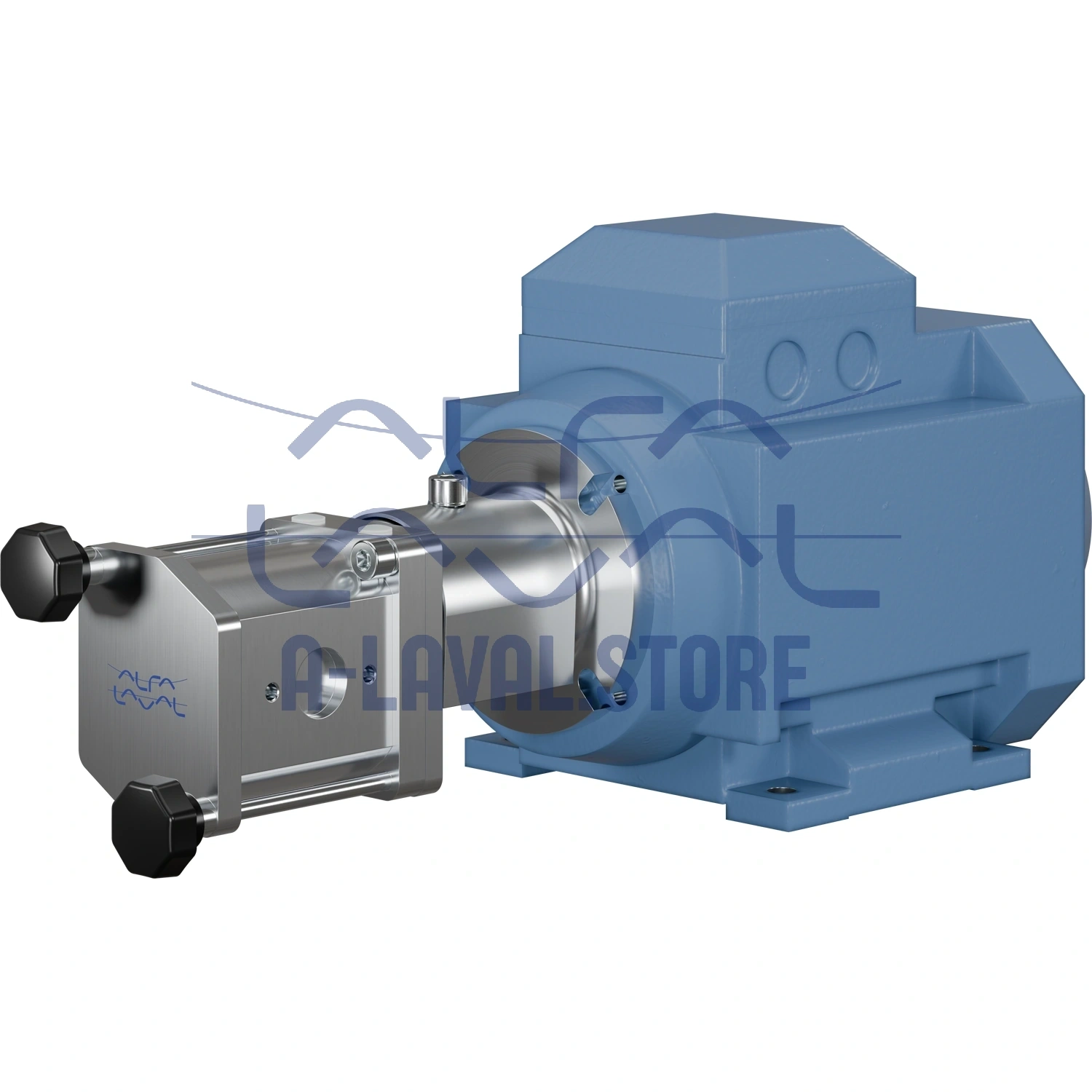

M210 1/2″ BSP SC/SC EPDM PL – 0,37 6 POLE IE3 M1AAC51B/6
Technical Details
| Dimension a inch | 2.97 |
| Dimension a mm | 75.5 |
| Dimension b inch | 5.19 |
| Dimension b mm | 132 |
| Dimension c inch | 2.05 |
| Dimension c mm | 52 |
| Dimension d inch | 2.24 |
| Dimension d mm | 57 |
| Dimension e inch | 1.1 |
| Dimension e mm | 28 |
| Dimension f inch | .79 |
| Dimension f mm | 20 |
| Dimension g inch | .12 |
| Dimension g mm | 3 |
| Dimension h inch | .2*0.1 |
| Dimension h mm | 5*3 |
| Dimension i inch | 2.64 |
| Dimension i mm | 13 |
| Dimension j inch | 7/32" |
| Dimension j mm | M6*12 |
| Dimension k inch | 2.75 |
| Dimension k mm | 70 |
| Dimension l inch | .55 |
| Dimension l mm | 67 |
| Dimension m inch | 1.26 |
| Dimension m mm | 32 |
| Dimension n inch | 2.05 |
| Dimension n mm | 52 |
| Dimension p mm | 42.5 |
| Dimension q inch | 1.42 |
| Dimension q mm | 36 |
| Dimension s inch | 1.06 |
| Dimension s mm | 27 |
| Dimension t inch | ø0.25 |
| Dimension t mm | ø6.5 |
| Elastomer | EPDM |
| Gears | Plain SS – 60°C |
| Motor type | Bareshaft |
| Mounting options | Motor 0.37 kW / 6 pole / IE3 |
| Port size | ½" |
| Port type | BSP Female |
| Product seal | Silicon Carbide / Silicon Carbide |
| Pump model | M210 |
| Weight – Net (Kg) | 18.2 kg |
