MFV ANGLE MANUAL – CLIP-ON/SWAGE
Technical Details
| Product Model | SB Mini Flow Valve |
| Body function | Shut-off |
| Actuation | Manual |
| Body combination | Drain valve with fittings and clip-on |
| Size mm | 6 |
| Elastomer | EPDM |
| Product wetted steel part | 1.4404 (316L) |
| Inside surface quality | Ra ≤ 1.6 μm |
| Outer diameter mm | 8×1 |
| Air pressure | 6 – 8 |
| Max product pressure | 6 |
| Max product pressure psi | 87 |
| Temperature range | 1 – 100 |
| Temperature range fahrenheit | 33 – 212 |

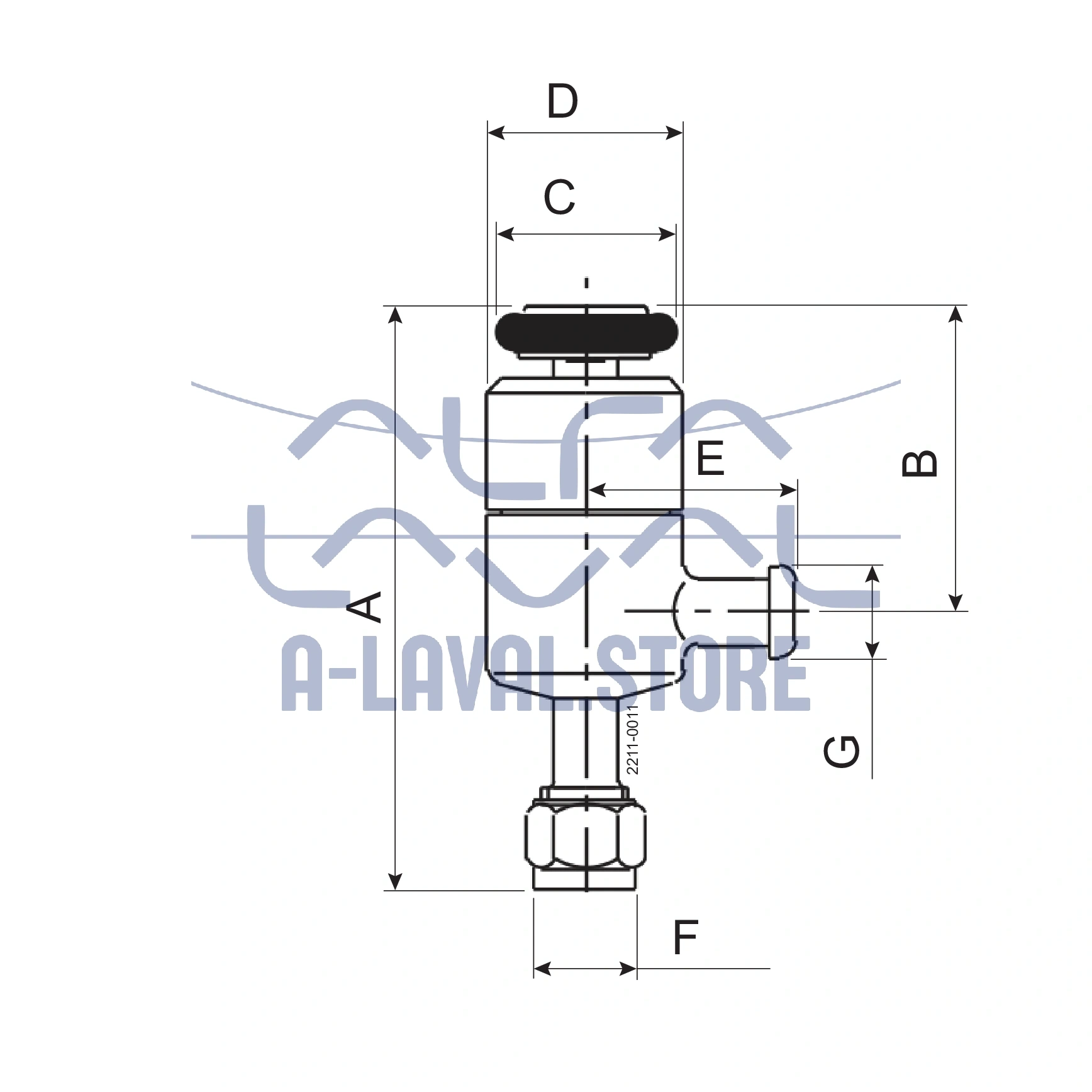

| Dimension a mm | 86 |
| Dimension a inch | 3.38 |
| Dimension b mm | 47 |
| Dimension b inch | 1.85 |
| Dimension c mm | 28 |
| Dimension c inch | 1.1 |
| Dimension d mm | 30 |
| Dimension d inch | 1.18 |
| Dimension e mm | 32 |
| Dimension e inch | 1.26 |
| Dimension g inch | 0.55 |
| Dimension g mm | 14 |
| Weight – Net (Kg) | 0.27 kg |
