MFV CHANGE OVER PNEUMATIC – SWAGE/SWAGE NC
Technical Details
| Actuation | Pneumatic |
| Actuator function | Normally closed |
| Air pressure | 6 – 8 |
| Body combination | 2-way valve |
| Body function | Change-over |

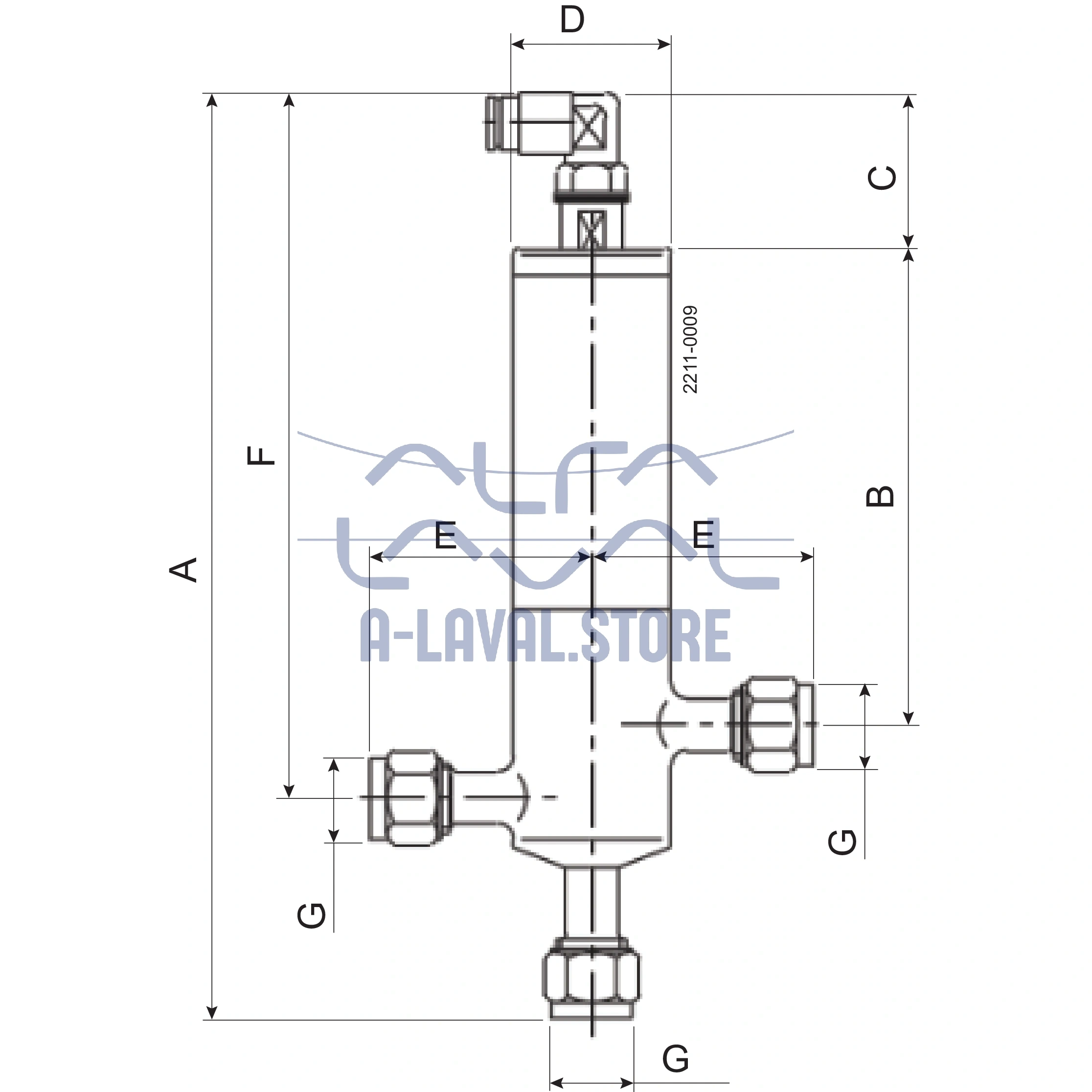

| Dimension a inch | 6.77 |
| Dimension a mm | 172 |
| Dimension b inch | 3.58 |
| Dimension b mm | 91 |
| Dimension c inch | 1.02 |
| Dimension c mm | 26 |
| Dimension d inch | 1.18 |
| Dimension d mm | 30 |
| Dimension e inch | 1.57 |
| Dimension e mm | 40 |
| Dimension g inch | 0.63 |
| Dimension g mm | 16 |
| Elastomer | EPDM |
| Inside surface quality | Ra ≤ 1.6 μm |
| Max product pressure | 6 |
| Max product pressure psi | 87 |
| Outer diameter mm | 8×1 |
| Product Model | SB Mini Flow Valve |
| Product wetted steel part | 1.4404 (316L) |
| Size mm | 6 |
| Temperature range | 1 – 100 |
| Temperature range fahrenheit | 33 – 212 |
| Weight – Net (Kg) | 0.5 kg |
