NON-RETURN VALVE LKC-2-DIN-W- – DN40-EPDM-304
Technical Details
| Size din | DN40 |
| Product wetted steel part | 1.4307 (304L) |
| Elastomer | EPDM |
| Connection type | Welding ends |
| Installation recommendations | Vertical position |
| Connection size | 50 |
| Connection size inch | 2 |
| Inside surface quality | Ra ≤ 0.8 μm |
| Outside surface quality | Bright |
| Max product pressure | 1000 kPa (10 bar) |
| Max product pressure psi | 14.5 PSI |
| Max temperature | 140° C (EPDM) |
| Max temperature fahrenheit | 284°F (EPDM) |
| Min temperature | -10° C |
| Min temperature fahrenheit | 14°F |

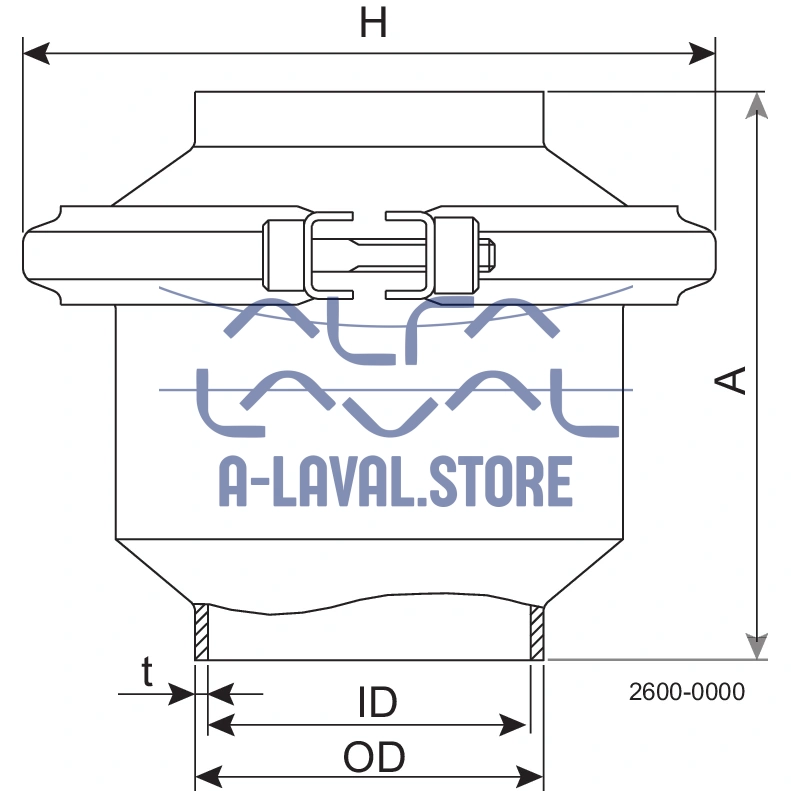

| Dimension a mm | 75.0 |
| Dimension a inch | 3.44 |
| Dimension h mm | 85.5 |
| Dimension h inch | 4.29 |
| Dimension t mm | 2 |
| Dimension t inch | 0.06 |
| Outer diameter mm | 42.0 |
| Outer diameter inch | 2.00 |
| Inner diameter mm | 38.0 |
| Inner diameter inch | 1.91 |
| Classification | II 2 G D* |
| Certification | ATEX |
| Weight – Net (Kg) | 0.73 kg |
