SAMPLING VALVE SIZE 4 25-38MM – TRI CLAMP Q (SILICONE) SINGLE SEAT WITH HANDLE
Technical Details
| Size mm | 25-38 |
| Connection type | Tri-Clamp |
| Body combination | Single Seat handle |
| Size interface | 4 |
| Elastomer | Q (Silicone) |
| Product wetted steel part | 1.4404 (316L) |
| Hfh application | Hygienic |
| Inside surface quality | Ra ≤ 0.8 μm |
| Outside surface quality | Polished |
| Temperature range | 1 – 130 |
| Temperature range fahrenheit | 33.8 – 266 |
| Min working pressure | 0 |
| Max working pressure psi | 87 |
| Max working pressure | 6 |
| Min working pressure psi | 0 |

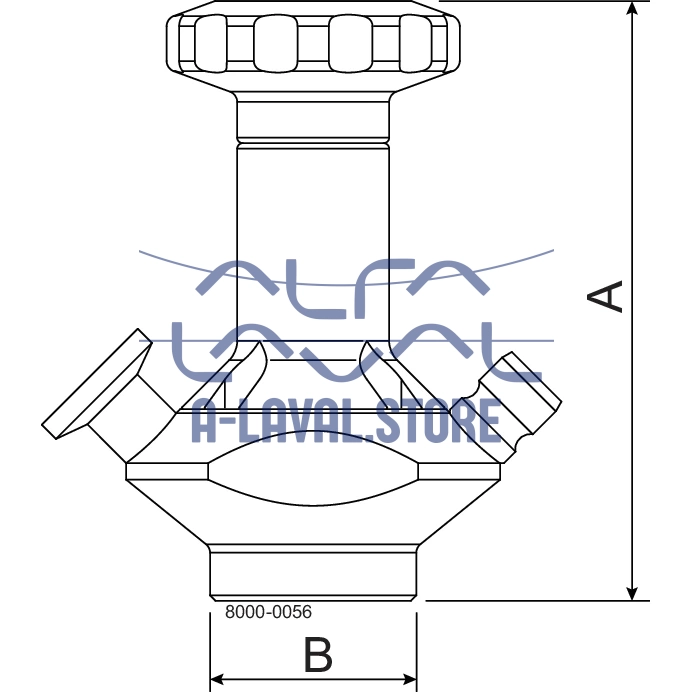

| Dimension a mm | 87.9 |
| Dimension a inch | 3.46 |
| Dimension b mm | 50.5 |
| Dimension b inch | 1.99 |
| Dimension d mm | 4 |
| Dimension d inch | 0.16 |
| Dimension e mm | 6 |
| Dimension e inch | 0.24 |
| Dimension f mm | 78.7 |
| Dimension f inch | 3.10 |
| Dimension g mm | 46 |
| Dimension g inch | 1.81 |
| Dimension h mm | 25 |
| Dimension h inch | 0.98 |
| Weight – Net (Kg) | 0.9 kg |
