SIGHT GLASS LKS-78 W/MINI- – VISION LIGHT FITTINGS TYPE 53
Technical Details
| Product Model | Tank sight glasses LKS |
| Size mm | 78 |
| Size inch | 3.071 |
| Material | 1.4301 (304) |
| Bulb type | Excluding miniVISION |
| Push button | Without push button |

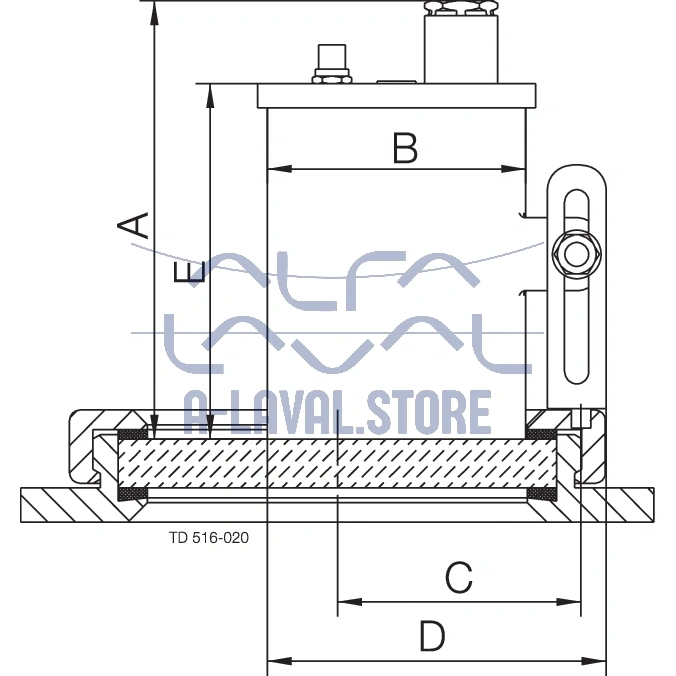

| Dimension a inch | 3.54 |
| Dimension a mm | 90 |
| Dimension b inch | 2.09 |
| Dimension b mm | 53 |
| Dimension c inch | 1.89 |
| Dimension c mm | 48 |
| Dimension d inch | 2.83 |
| Dimension d mm | 72 |
| Dimension e inch | 2.87 |
| Dimension e mm | 73 |
| Weight – Net (Kg) | 1.22 kg |
