SIGHT GLASS WELDING NW40 304 –
Technical Details
| Range | In-line sight glasses |
| Size din | DN40 |
| Material | 1.4301 (304) |
| Gasket material | NBR |
| Certificate | 3.1 Certificate |
| Standard | DIN tube weld ends |

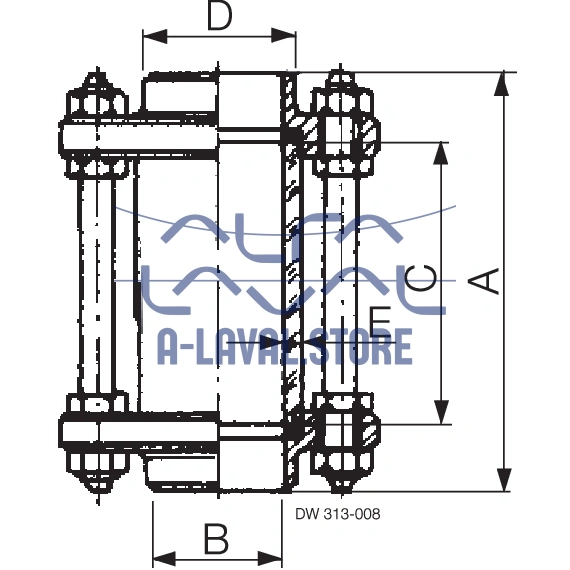

| Dimension a mm | 112 |
| Dimension a inch | 4.41 |
| Dimension b mm | 38 |
| Dimension b inch | 1.5 |
| Dimension d mm | 43 |
| Dimension d inch | 1.69 |
| Dimension e mm | 5 |
| Dimension e inch | 0.2 |
| Weight – Net (Kg) | 0.94 kg |
