SLOT STRAINER LKSF-BL WELDING – SLOT STRAINER LKSF-BL WELDING – 25 316 74MY
Technical Details
| Capacity bar | 10-120 m3 /h (water) at Δ p = 1 bar |
| Connection type | Welding ends |

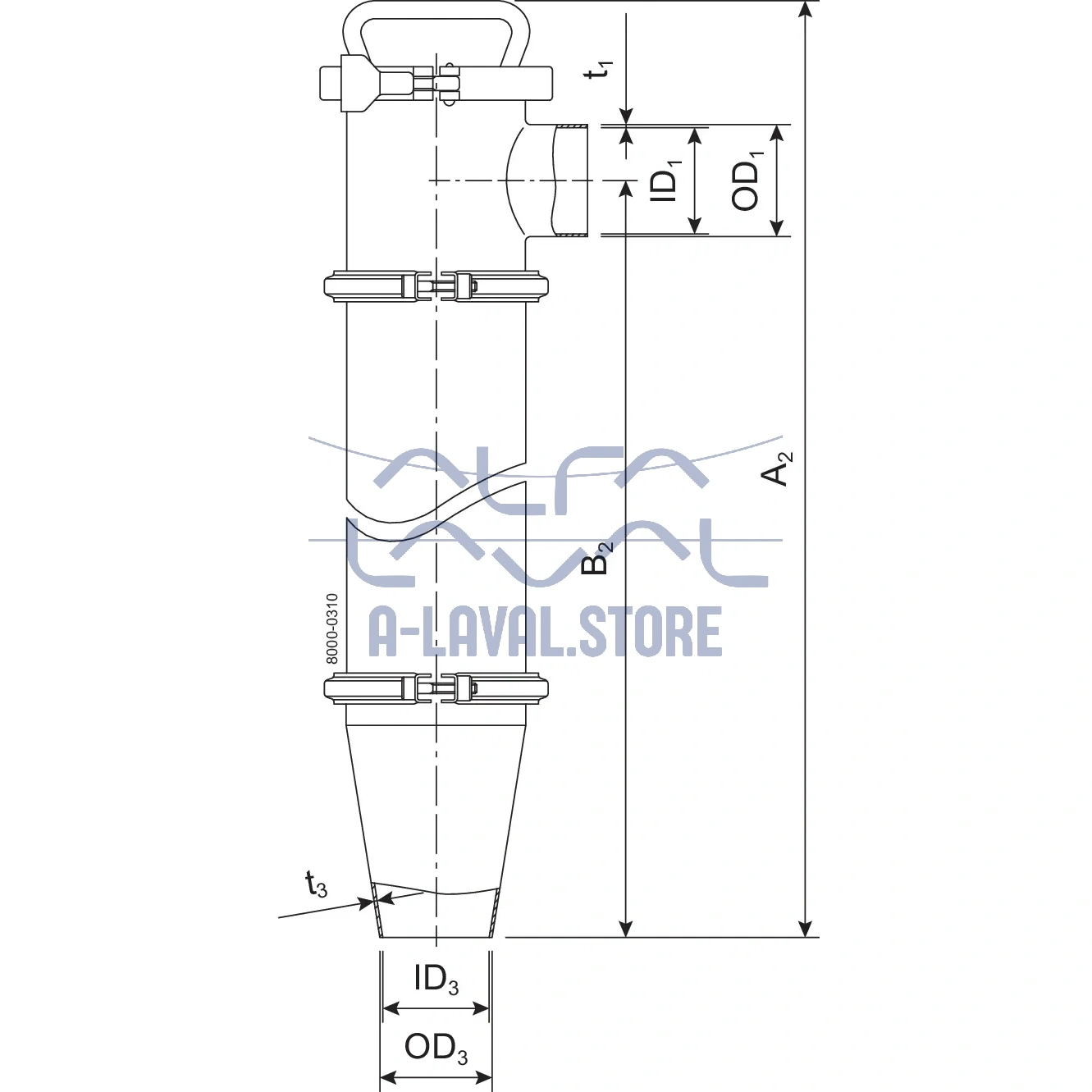

| Dimension a1 mm | 727 |
| Dimension a2 mm | 852 |
| Dimension b1 mm | 632.5 |
| Dimension b2 mm | 756 |
| Dimension c mm | 130 |
| Dimension e mm | 86 |
| Dimension t1 mm | 1.6 |
| Inner diameter 1 mm | 22.2 |
| Max p in flow direction bar | 1000 kPa (10 bar |
| Max working pressure bar | 1000 kPa (10 bar) |
| Other connection types | DS, SMS, IDF, BS, Clamp |
| Other steel parts | AISI 304 Stainless Steel |
| Outer diameter 1 mm | 25.4 |
| Product wetted elastomers | EPDM |
| Product wetted steel part | AISI 316 |
| Size inch | 1 |
| Size iso | 25 |
| Size mm | 25 |
| Slot size standard | 74 μm |
| Strainer area cm2 | 1100 |
| Strainer type | LKSF-BL |
| Surface finish | Semi-Bright |
| Temperature range celcius | -10 to +140 °C |
| Weight – Net (Kg) | 8.5 kg |
