Connection type: Weld ends
Dimension L1, mm: 110
Dimension L2, mm: 80
Finish: POL (ID=0.8/OD=1.0)
Material: 1.4404 (316L)
OD/ID x t: 76.10/72.90 x 1.60
OD1/ID1 x t1: 76.10/72.90 x 1.60
OD2: 63.5
OD2/ID2 x t2: 63.50/60.30 x 1.60
Product Model: ISO EN 10357-D Tees Reducing Short
Range: Tees
Second size: 63.5 mm
Size: 76.1 mm
Standard: ISO 2037
Weight – Net (Kg): 0.79 kg
Log in or register to view prices.
Log in or register to view and purchase products.

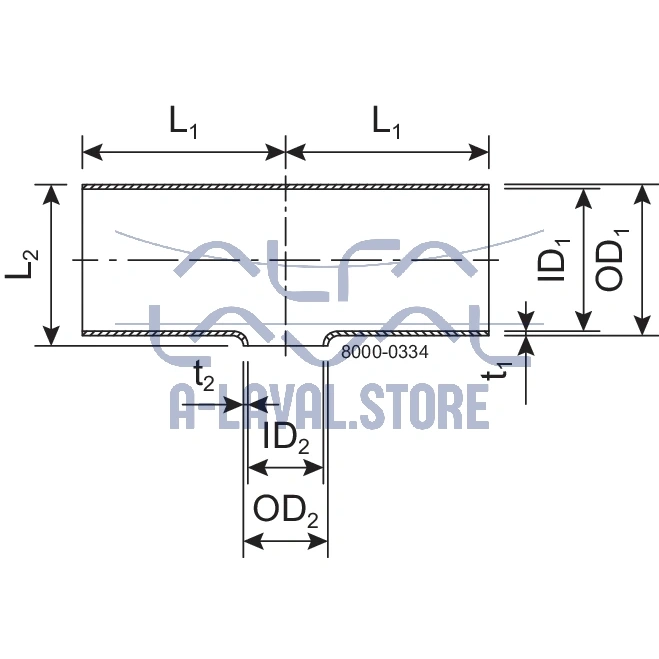

TEE-RED 76.1-63.5-POL-316L – TEE-SHORT-ISO2037
| Connection type | Weld ends |
| Dimension L1, mm | 110 |
| Dimension L2, mm | 80 |
| Finish | POL (ID=0.8/OD=1.0) |
| Material | 1.4404 (316L) |
| OD/ID x t | 76.10/72.90 x 1.60 |
| OD1/ID1 x t1 | 76.10/72.90 x 1.60 |
| OD2 | 63.5 |
| OD2/ID2 x t2 | 63.50/60.30 x 1.60 |
| Product Model | ISO EN 10357-D Tees Reducing Short |
| Range | Tees |
| Second size | 63.5 mm |
| Size | 76.1 mm |
| Standard | ISO 2037 |
| Weight – Net (Kg) | 0.79 kg |
TEE-RED 76.1-63.5-POL-316L
