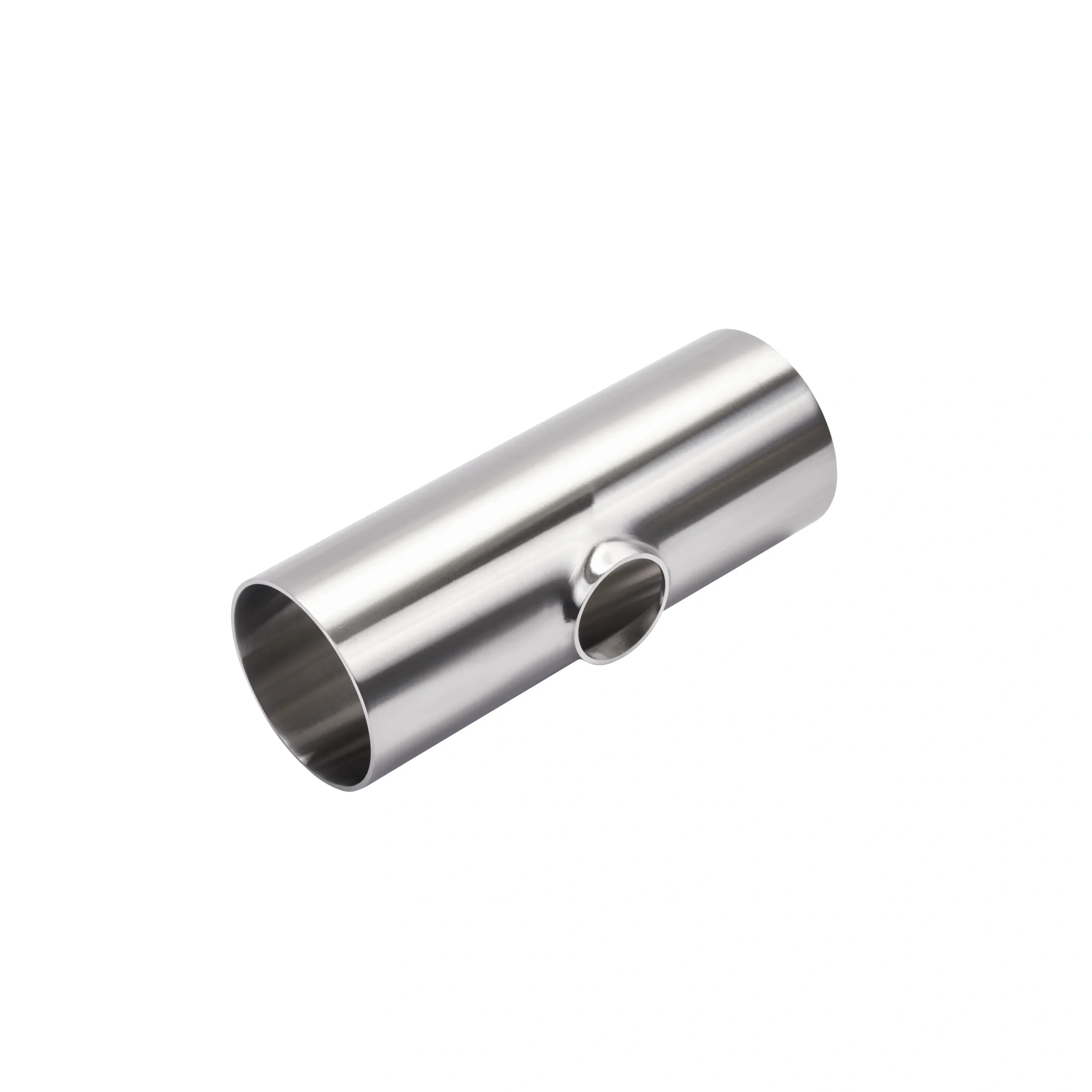

TEE RTK DN32/25 HSF3 1.4307 – DIN 11852
Technical Details
| Range | Tees |
| Product Model | DIN EN 10357-A Reducing Tees Short EN 10374-A |
| Size | DN32 |
| Second size | DN25 |
| Material | 1.4307 (304L) |
| Finish | HSF3 (ID=0.8/OD=0.8) |
| Connection type | Weld ends |
| Standard | DIN 11852 EN 10374-A |
| Design | Reduced Tee Short, RTK |
| OD/ID x t | 35/32 x 1.50 |
| OD1/ID1 x t1 | 35/32 x 1.50 |
| OD2/ID2 x t2 | 29/26 x 1.50 |
| Dimension L1, mm | 55 |
| Dimension L2, mm | 19 |
| Weight – Net (Kg) | 0.12 kg |
