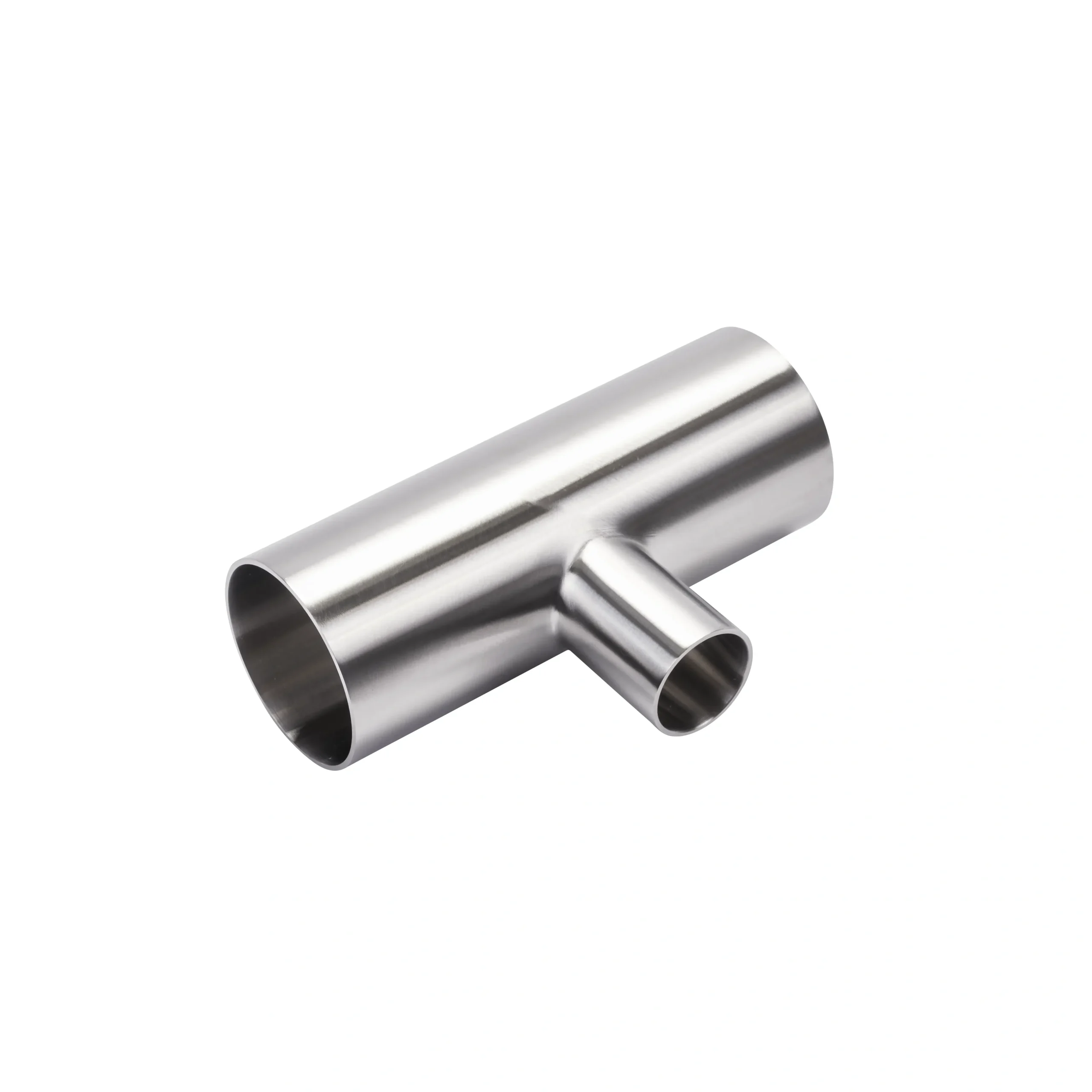

TEE RTS DN65/50 HSF3 1.4307 – DIN 11852
Technical Details
| Range | Tees |
| Product Model | DIN EN 10357-A Reducing Tees EN 10374-A |
| Size | DN65 |
| Second size | DN50 |
| Material | 1.4307 (304L) |
| Finish | HSF3 (ID=0.8/OD=0.8) |
| Connection type | Weld ends |
| Standard | DIN 11852 EN 10374-A |
| Design | Reduced Tee Long, RTS |
| OD/ID x t | 70/66 x 2 |
| OD1/ID1 x t1 | 70/66 x 2 |
| OD2/ID2 x t2 | 53/50 x 1.50 |
| Dimension L1, mm | 80 |
| Dimension L2, mm | 78.50 |
| Weight – Net (Kg) | 0.56 kg |
