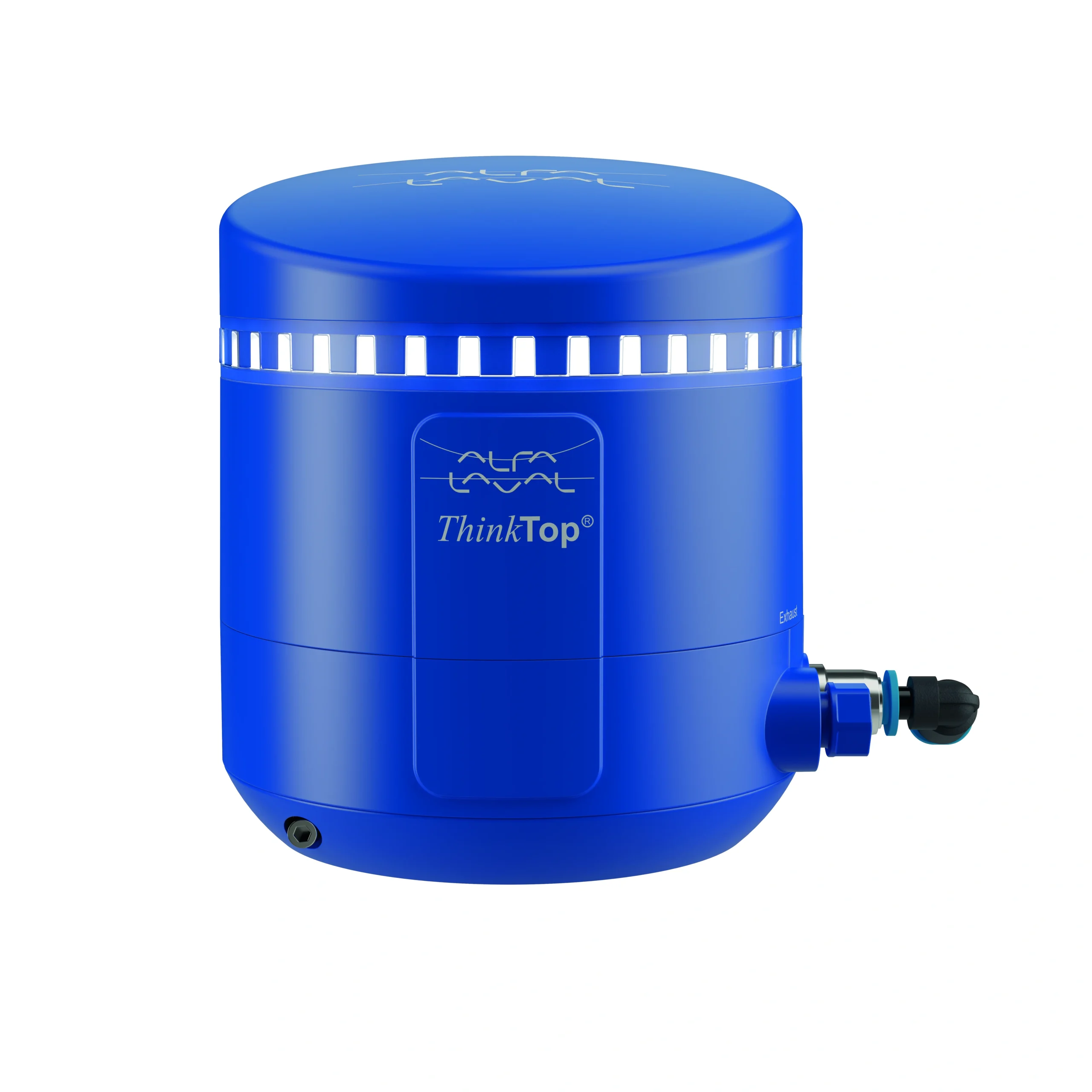

ThinkTop V40 Digital – 24VDC, 1 solenoid, ø6 mm air conn, cable gland
Technical Details
| Automation type | V40 |
| Communication interface | Digital |
| Electric connection | Cable gland M16 |
| Solenoid type | 3/2 |
| Gasket material | Nitrile / NBR |
| Number of solenoids | 1 |
| Air fitting rim color | Blue |
| Certificate | UL/CSA Certificate: E174191 |
| Other steel parts | 1.403 / 304 |
| Plastic part material | Nylon PA 12 |
| B10 data | 5 million cycles |
| Nominal power (W) | 0.3 W |
| Air fitting material | Nickel plated, Nylon PA6 |
| Air quality | Class3,3,3 acc. DIN ISO 8573-1 |
| Air supply bar | 3-7 |
| Air supply psi | 43-102 |
| Air pressure bar | 6-7 |
| Air pressure psi | 87-102 |
| Working temperature range c | -10 to +60 |
| Working temperature range f | +14 to +140 |
| Constant humidity c | +40 |
| Constant humidity f | +140 |
| Working humidity | 93% R.H. |
| Supply voltage | 24 VDC ± 10% |
| Sensor accuracy inch | ± 0.04 |
| Protection class ip | IP69K |
| Protection class nema | 4, 4X, 6 |
| Vibration (Hz) | 18 – 1000 |
| Shock (G) | 100 |
| Air fitting mm | 6 |
| Max wire diameter mm2 | 0.75 (0,5mm2) |
| Max wire diameter inch2 | 0.032 (AWG 20) |
| Clamping Range Diameter (inch) | 0.28 – 0.35 |
| Clamping Range Diameter (mm) | 7 – 9 |
| Mean time to failure mttf | 224 years |
| Operating recommendation | Operate once a month to prevent dry-out |
| Dimension a mm | 123 |
| Dimension a inch | 4.84 |
| Dimension b mm | 105 |
| Dimension b inch | 4.13 |
| Dimension c mm | 200 |
| Dimension c inch | 7.87 |
| Dimension d mm | 150 |
| Dimension d inch | 5.91 |
