VALVE SMP-BC CL 38 22 NC EPDM – VALVE SMP-BC CL 38 22 NC EPDM – 316L
Technical Details

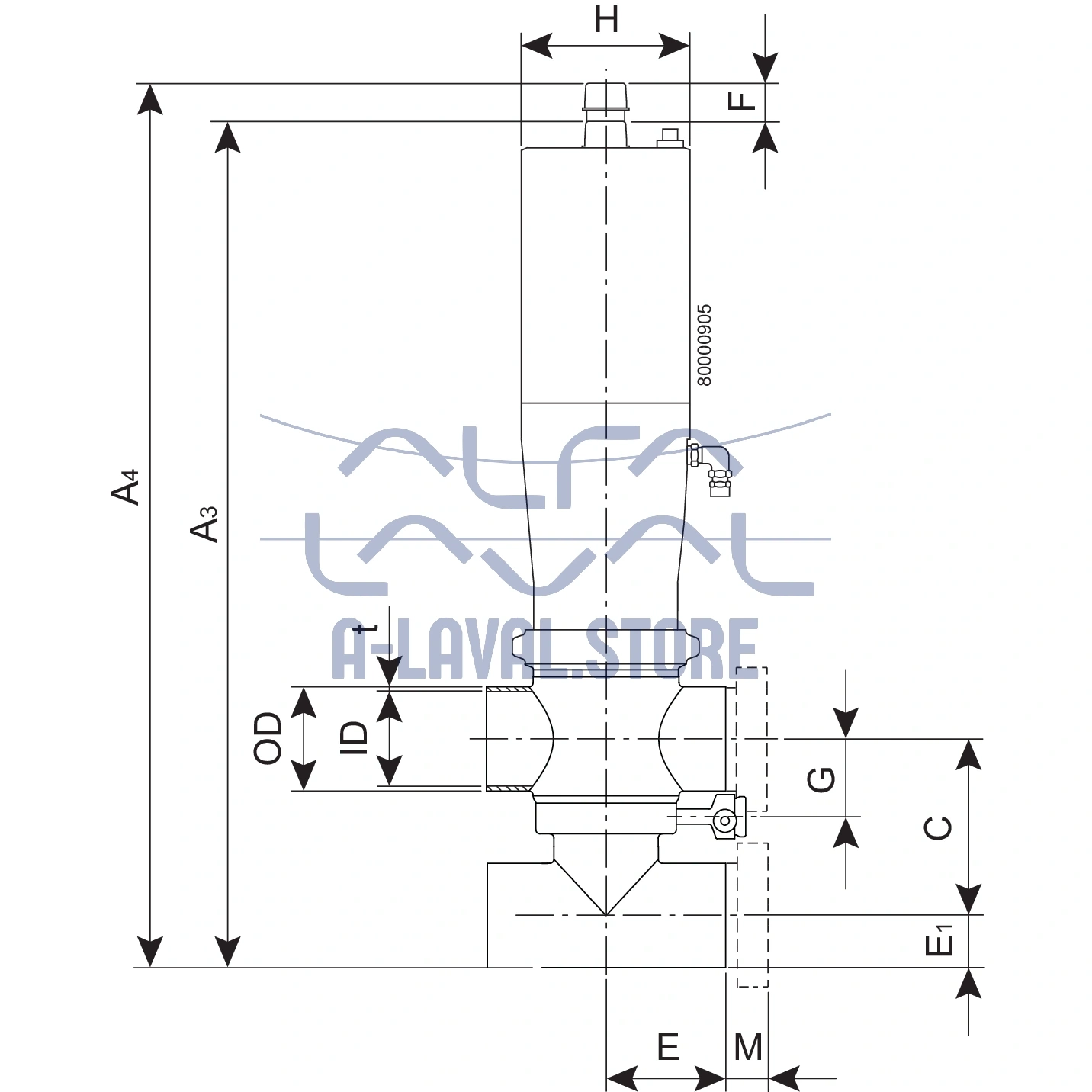

| Actuation | Pneumatic |
| Actuator function | Normally closed |
| Body function | Shut-off |
| Certification | ATEX |
| Classification | II 2 G D |
| Connection type | Welding ends |
| Dimension a1 inch | 13.58 |
| Dimension a1 mm | 345 |
| Dimension a2 inch | 14.57 |
| Dimension a2 mm | 370 |
| Dimension e inch | 1.95 |
| Dimension e mm | 49.5 |
| Dimension g inch | 1.06 |
| Dimension g mm | 27 |
| Dimension h inch | 3.5 |
| Dimension h mm | 89 |
| Dimension j inch | 1.84 |
| Dimension j mm | 46.7 |
| Dimension k inch | 2.48 |
| Dimension k mm | 63 |
| Dimension t inch | 0.06 |
| Dimension t mm | 1.6 |
| Elastomer | EPDM |
| Inner diameter inch | 1.37 |
| Inner diameter mm | 34.9 |
| Inside surface quality | Ra ≤ 1.6 μm |
| Max air pressure | 500 to 800 kPa (5 to 8 bar) |
| Max air pressure psi | 72.5 to 116 PSI (5 to 8 bar) |
| Max product pressure | 1000 kPa (10 bar) |
| Max product pressure psi | 145 PSI (10 bar) |
| Min product pressure | Full vacuum |
| Min product pressure psi | Full vacuum |
| Outer diameter inch | 1.5 |
| Outer diameter mm | 38.1 |
| Outside surface quality | Blasted |
| Port configuration | 22 |
| Product wetted steel part | 1.4404 (316L) |
| Size inch | 1.5 |
| Size iso | 38 |
| Size mm | 38 |
| Spring | Standard |
| Temperature range | -10°C to +140°C (EPDM) |
| Temperature range fahrenheit | 14°F to +284°F (EPDM) |
| Weight – Net (Kg) | 6.6 kg |
