Connection type: Weld ends
Design: B7RWWW

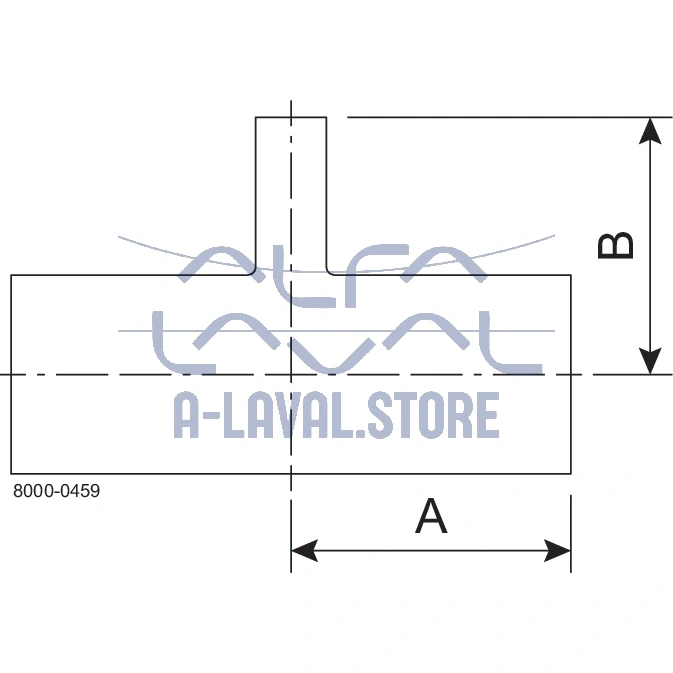

Dimension A: 73.00
Dimension A, Inch: 2.88
Dimension B: 66.70
Dimension B, Inch: 2.63
Finish: SF1(PL) (ID=20/OD=32µin)
Material: 316L
OD/ID x t: 50.80/47.50 x 1.65
OD/ID x t, inch: 2.000/1.870 x 0.065
Product model: Tri-Clover BPE Reducing Tees
Range: Tees
Second size: 1.5″
Size: 2″
Standard: ASME BPE
Weight – Net (Kg): 0.86 kg
Log in or register to view prices.
Log in or register to view and purchase products.
B7RWWW-2 X 1 1/2-316L-PL. – BPE WELD RED T 20RA/POL SF1
| Connection type | Weld ends |
| Design | B7RWWW |
| Dimension A | 73.00 |
| Dimension A, Inch | 2.88 |
| Dimension B | 66.70 |
| Dimension B, Inch | 2.63 |
| Finish | SF1(PL) (ID=20/OD=32µin) |
| Material | 316L |
| OD/ID x t | 50.80/47.50 x 1.65 |
| OD/ID x t, inch | 2.000/1.870 x 0.065 |
| Product model | Tri-Clover BPE Reducing Tees |
| Range | Tees |
| Second size | 1.5" |
| Size | 2" |
| Standard | ASME BPE |
| Weight – Net (Kg) | 0.86 kg |
B7RWWW-2 X 1 1/2-316L-PL.
