INSPECTION PORT R-332X440-060 – -E-1.4404, SS HANDLE

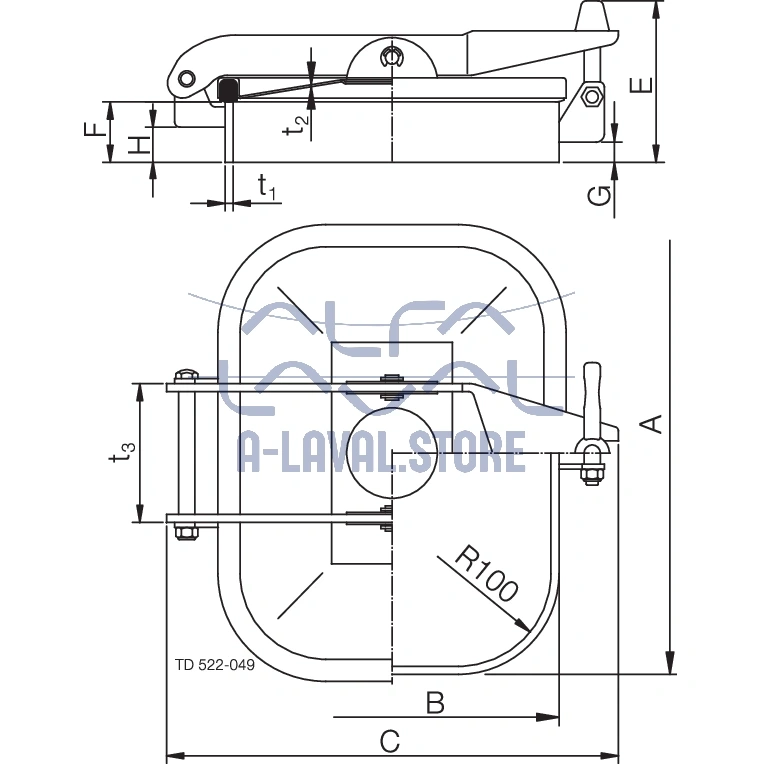

Technical Details
| Certificate | 3.1 Certificate |
| Dimension a inch | 17.32 |
| Dimension a mm | 440 |
| Dimension b inch | 13.07 |
| Dimension b mm | 332 |
| Dimension c inch | 17.68 |
| Dimension c mm | 449 |
| Dimension f inch | 2.36 |
| Dimension f mm | 60 |
| Dimension g mm | no |
| Dimension t1 inch | 0.31 |
| Dimension t1 mm | 8 |
| Dimension t2 inch | 0.08 |
| Dimension t2 mm | 2 |
| Dimension t3 inch | 5.43 |
| Dimension t3 mm | 138 |
| Frame height | 60 |
| Gasket material | EPDM |
| Handle design | V-handle |
| Handle material | Stainless steel |
| Hinge position | External |
| Inside surface quality | Electropolished on Lid to Ra≤0.8 µm and Brushed on Frame to Ra≥3.0 µm |
| Material | 1.4404 (316L) |
| Max gasket temperature c | 90 |
| Max gasket temperature f | 194 |
| Min gasket temperature c | -15 |
| Min gasket temperature f | 5 |
| Opening direction | Outwards |
| Position on tank | Below liquid level – on side of the tank |
| Pressure type | Static |
| Range | Rectangular covers |
| Size inch | 13.07×17.32 |
| Size mm | 332×440 |
| Weight – Net (Kg) | 11.7 kg |
